Snappy Surveillance security has moved to the forefront globally as a strategic tool in protecting corporate assets against terrorism, crime prevention, and public safety. At the same time, video surveillance usage is increasing as a tool remotely from an operations center. To support the IP video network and enable remote camera control and operation, a high-speed IP/Ethernet network is required with its design and functionality tailored to IP video applications. For traffic monitoring and local government security. The days of grainy and blurry analog Closed Circuit Television (CCTV) systems have been replaced IP security cameras are used in nearly every type of facility and application: on streets, on building exteriors, inside buildings and hallways, in parking lots and so on.

There are many types of fixed or adjustable cameras suited for many applications. They serve the needs of military army, government, utilities, corporate, medical, retail, hospitality, transportation, and education and more. To serve the wide variety of needs and applications, whether indoors or out, a reliable high-speed IP network is needed to connect cameras, servers, and the operations center where monitoring occurs, whether inside a building or top a roof or traffic light. The range of applications, environments, and even the types of cameras used, all dictate the need for adaptive IP/Ethernet networking infrastructure scalable to and optimized for the specific requirement. A “one solution fits all” approach lacks the robustness and economic efficiency to solve the range of applications required of IP video surveillance. By advanced digital IP cameras and systems producing high-resolution, high-definition, real-time video. Along with that new technology, the high-speed IP networking infrastructure enabling it is critical.

Allied Telesis places a high value on IP Quality of Service (QoS) as a requisite for video as well as multiservice Triple Play (voice, video and data). Configuring a Layer 3 switch as a Layer 2 device, as needed. Its iMG gateway devices support both Layer 2 and 3 functions, as does the iMAP carrier access platform. The product s serve as building blocks to create the right network at the right location, with the scalability and flexibility to deliver optimum performance and economics, network (for example, IP video from a camera and traffic control)

Low Latency

Allied Telesis uses chip and software designs to deliver extremely low latency for video traffic, as real-time digital video quality can suffer from latency or buffering. As one example, a number of Allied Telesis Ethernet switches and iMAP carrier access platforms support Ethernet Protection Switch Rings (EPSR) on the fiber uplink for redundancy in the transport network. Its Ethernet Protection Switch Rings (EPSR) technology provides sub-50 millisecond failover switch protection, delivering hitless protection for streaming video should a fiber cut or failure occur

Alternative Solutions

To avoid any chance of a single point of failure, substituting the 800 0S/GS Series switch with eit her the AT-9424T/POE or AT- 8624POE Switches provides power-supply redundancy. Features and functionality are the same, including models w ith varying port densities, but they offer additional redundancy over the 800 0S/GS Series. There are occasional situations where only a few cameras and a single host is needed, as in the case of a small retail store or in those cases where distance requires the use of fiber. In these applications, Allied Telesis media converters and PoE injectors provide a scalable and cost effective solution. Examples of these products include the AT-6101G (PoE injector), AT-PC2002POE, and AT-PC232/POE (fiber-to-PoE media converters).Additionally, Allied Telesis offers alternative solutions for IP security cameras that do not support PoE. Using a small, economically at tractive AT-6102G POE Splitter to directly connect the camera allows power to be taken from the standard PoE line and supply the camera with user-selectable voltages between 5 and 12 V.

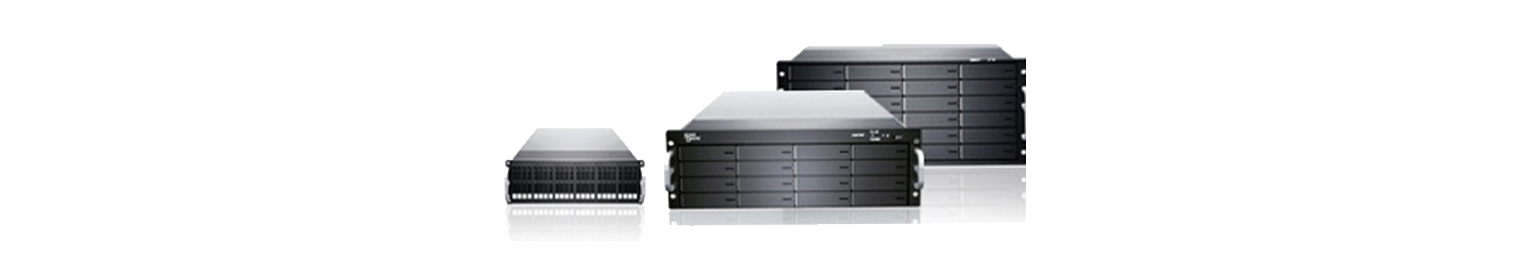

Video Surveillance Appliance Server VS004 Series

• 4 camera solutions with up to 12TB storage capacity.
• Supports any RTSP / ONVIF IP camera
• Unlimited client license for PC and Mac for live view and video search
• Exports marked segment with complete Chain-of-Custody.
• Recommended for up to 10 cameras solutions with up to 12TB storage capacity
• Supports any RTSP / ONVIF IP camera
• Unlimited client license for PC and Mac for live view and video search
• Support low resolution companion files for fast search and playback.
