IP Module
Features Technical Specifications Downloads High Resolution Images
IP Module

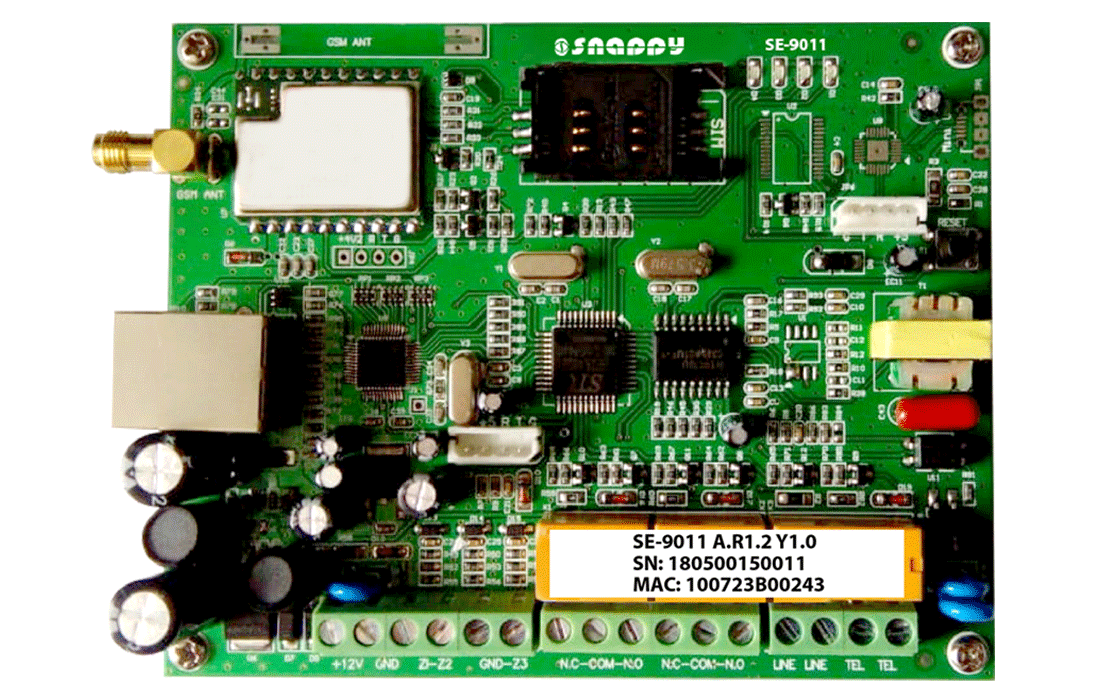

Model : SE-9011

Features

  • TCP/IP based, can communicate with RING-TIP terminal of alarm panel then transmit alarm and system information through GPRS or LAN/WAN network to CMS software. (Programmable for GPRS alarm first and LAN/WAN as backup or reverse or both)
  • The alarm panel must support standard ADEMCO 4+2 & Contact ID protocol.
  • Two IP address and two user account, can report to two different CMS. (Fixed IP or domain name are optional)
  • With telephone line fault monitoring function, can report to CMS.
  • With 3 extension zones and 2 relay which can be controlled by CMS software.
  • With SMS backup alarm function.
  • Can storage and inquiry 180 alarm records.
  • Working voltage 12V/DC
  • Can support PPPoE dial-up or DHCP auto dispatch or fixed IP address, when choosing LAN/WAN network.

Technical Specifications

Communication via GPRS TCP/IP or UDP/IP protocol
Working Voltage DC/12V ± 10%
Static Current <65mA
Working Current <80mA
Applicable Humidity 45%~95%
GSM Frequency Band E-GSM/GPRS 900/1800MH
Sending Power 2W /GSM900, 1W /GSM1800
Dimensions (L.W.H) 12.8cmx9.5cmx2.8cm
Weight 0.2kg
Applicable Temperature 4~60℃

Downloads

1

Catalog : IP Module

Click below link to download the catalog for the IP module - Model : SE-9011

Download Catalog
