1KVA

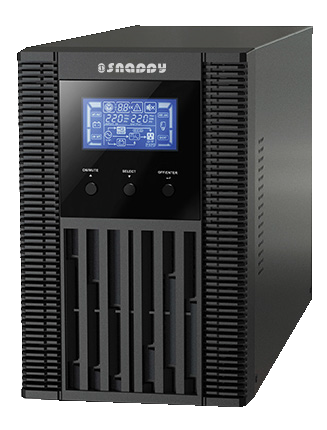

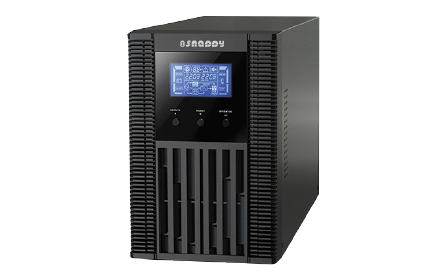

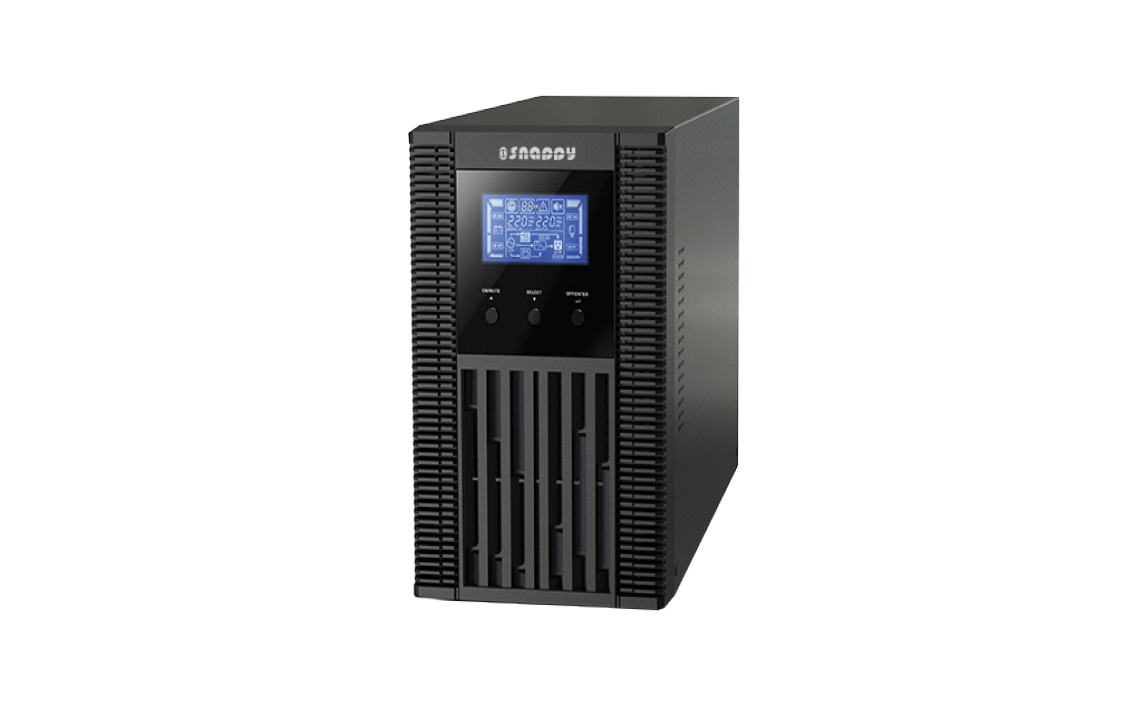

Model : SJ100

UPS System Model	SJ100
Phase	Single phase with ground
Capacity	1KVA/800W
Input
Nominal Voltage	100/110/115/120/127VAC or 200/208/220/230/240vac
Input Voltage Range	55-145 VAC or 110-300 VAC
Frequency Range	40HZ~70HZ
Power Factor	≥ 0.99 @ Nominal Voltage(100% load)
Output
Output Voltage	100/110/115/120/127VAC or 200/208/220/230/240VAC
Voltage Regulation	± 1%
Frequency Range (Synchronized Range)	47 ~ 53 HZ or57 ~ 63 HZ
Frequency Range (Batt. Mode)	50 HZ or 60 HZ ± 0.1 HZ
Current Crest Ratio	3:1
Harmonic Distortion	≤ 3 % THD (Linear Load) ≤ 6 % THD (Non-Linear Load)
Transfer Time
AC to DC	Zero
Inverter to Bypass	4 ms (Typical)
Waveform (Batt. Mode)	Pure Sinewave
EFFICIENCY
To AC Mode	88%
To Battery Mode	88%
Battery
Standard model machine
Battery type	12V9AH
Quantity	2
Standard charging time	4 hours charge to 90%
The maximum charge current	1A
Charging voltage	27.3VDC±1%
Long-run Model
Battery Type	Depending on the capacity of external batteries
Numbers	3
Charging Current (max.)	1.0A/2.0A/4.0A/6.0 A
Charging Voltage	41.0VDC ± 1%

INDICATORS
LCD	Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault
ALARM
Battery Mode	Sounding every 4 seconds
Low Battery	Sounding every second
Overload	Sounding twice every second
Fault	Continously sounding
PHYSICAL

ENVIRONMENT
Humidity	20-90 % RH @ 0- 40°C (non-condensing)
Noise Level	Less than 50dBA @ 1 Meter
MANAGEMENT
Smart RS-232/USB	Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC
Optional SNMP	Power management from SNMP manager and web browser
