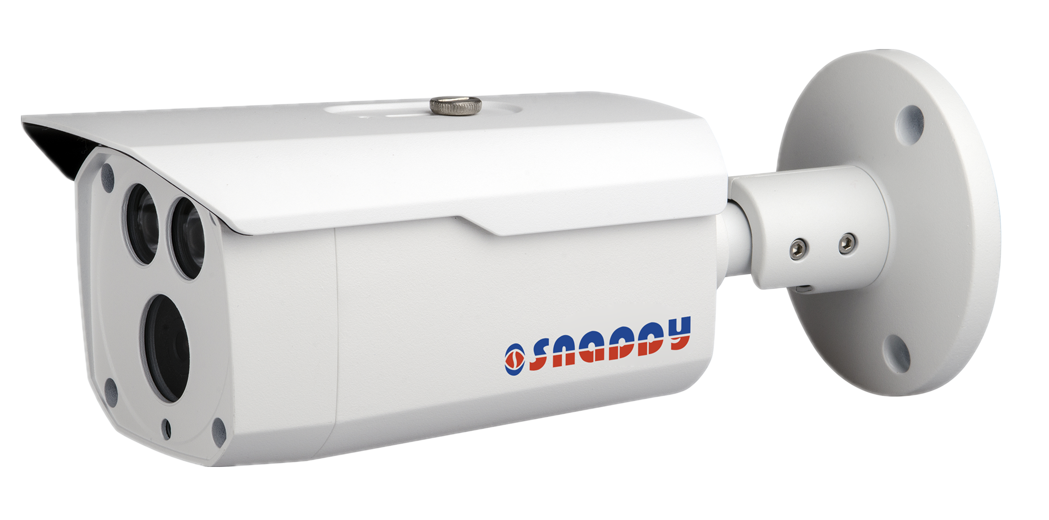

Camera |
Image Sensor
|
1/2.8” 2Megapixel progressive scan CMOS |
Effective Pixels
|
1920(H) x 1080(V) |
RAM/ROM
|
256MB/32MB
|
Scanning System
|
Progressive
|
Min. Illumination
|
0.009Lux/F2.0 (Color), 0Lux/F2.0 (IR on) |
S/N Ratio
|
More than 50dB |
IR Distance
|
Distance up to 80m (262.5ft)
|
IR On/Off Control
|
Auto/ Manual
|
IR LEDs
|
2
|
Lens |
Lens Type
|
Fixed |
Mount Type
|
Board-in |
Focal Length
|
3.6mm (6mm optional) |
Max. Aperture
|
F2.0 (F2.0) |
Angle of View
|
H: 87° (51°), V: 48°(30°) |
Optical Zoom
|
N/A |
Focus Control
|
Fixed |
Close Focus Distance
|
N/A |
Pan/Tilt/Rotation |
Pan/Tilt/Rotation Range
|
Pan: 0˚~360˚; Tilt: 0˚~87˚; Rotation: 0˚~360˚ |
Intelligence |
IVS (optional)
|
Tripwire, Intrusion, Object Abandoned/Missing |
Advanced Intelligent Functions
|
Face Detection |
Video |
Compression
|
H.265+/H.265/H.264+/H.264 |
Streaming Capability
|
3 Streams |
Resolution
|
1080P(1920x1080)/1.3M(1280x960)/720P(1280×720)/D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240) |
Frame Rate
|
Main Stream
|
1080P (1~50/60fps)
|
Sub Stream
|
D1(1~50/60fps)
|
Third Stream
|
1080P(1~25/30fps)
|
Bit Rate Control
|
CBR/VBR |
Bit Rate
|
H.264: 24~9472Kbps
H.265: 14~5632Kbps
|
Day/Night
|
Auto(ICR) / Color / B/W |
BLC Mode
|
BLC / HLC / WDR(120dB) |
White Balance
|
Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control
|
Auto/Manual |
Noise Reduction
|
3D DNR |
Motion Detection
|
Off / On (4 Zone, Rectangle) |
Region of Interest
|
Off / On (4 Zone) |
Electronic Image Stabilization (EIS)
|
N/A |
Smart IR
|
Support |
Defog
|
N/A |
Digital Zoom
|
16x |
Flip
|
0°/90°/180°/270° |
Mirror
|
Off / On |
Privacy Masking
|
Off / On (4 Area, Rectangle) |
