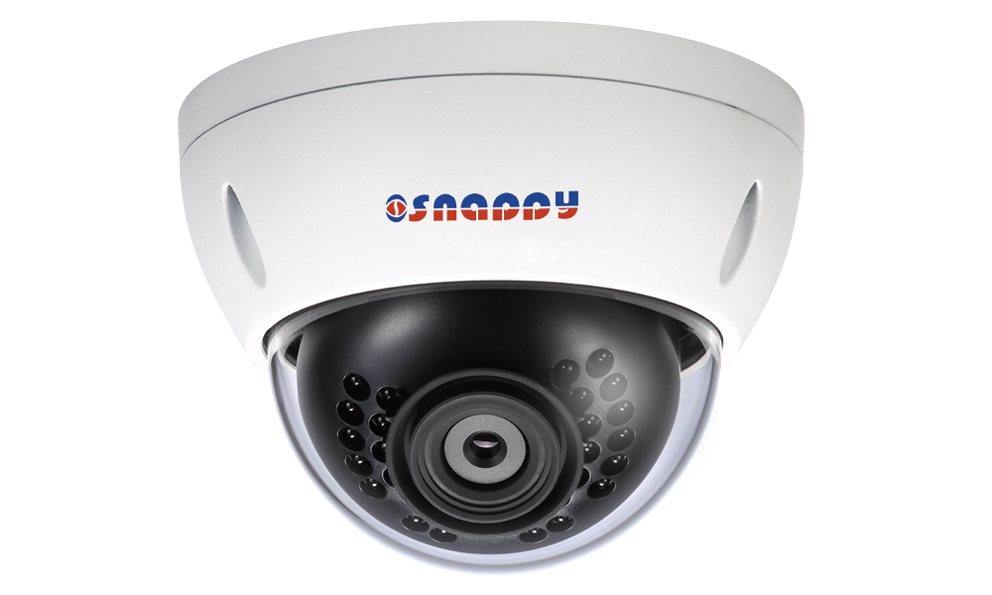

Mini Dome 2MP IR Camera - IP-D13FC
Model : IP-D13FC

Features

  • 1/3” 3Megapixel progressive scan Aptina CMOS
  • H.264&MJPEG dual-stream encoding
  • 25/30fps@2M(1920×1080)
  • DWDR, Day/Night(ICR), AWB,AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & DMSS
  • 3.6mm fixed lens (2.8mm, 6mm optional)
  • Max. IR LEDs Length 30m
  • Micro SD memory(-S), IP66, IK10,PoE

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/3” 3Megapixel Aptina CMOS
Effective Pixels 2048 (H)x1536(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
Min. Illumination Color: 0. 1Lux/F1.6; 0Lux (IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm(6mm optional)
Max Aperture F1.8(F2.0,F1.8)
Focus Control Manual
Angle of View H:71.9°(90°/45°)
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264/ H.264H/ H.264B/ MJPEG
Resolution 1080P(1920x1080)/720P(1280×720)/ D1(704×576/704×480) / CIF(352×288/352×240)
Frame Rate
Main Stream 1080P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 4kbps～8192kbps
Corridor Mode Support
Audio
Compression N/A
Interface N/A
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS
ONVIF ONVIF Profile S
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD Max 64GB(-S)
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption < 4.5W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP66
Vandal Resistance IK10

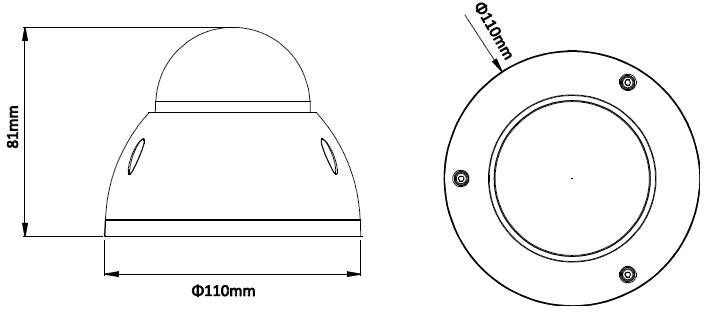

Dimensions Φ110mm×81mm
Weight 0.39kg

Application

1

Application
