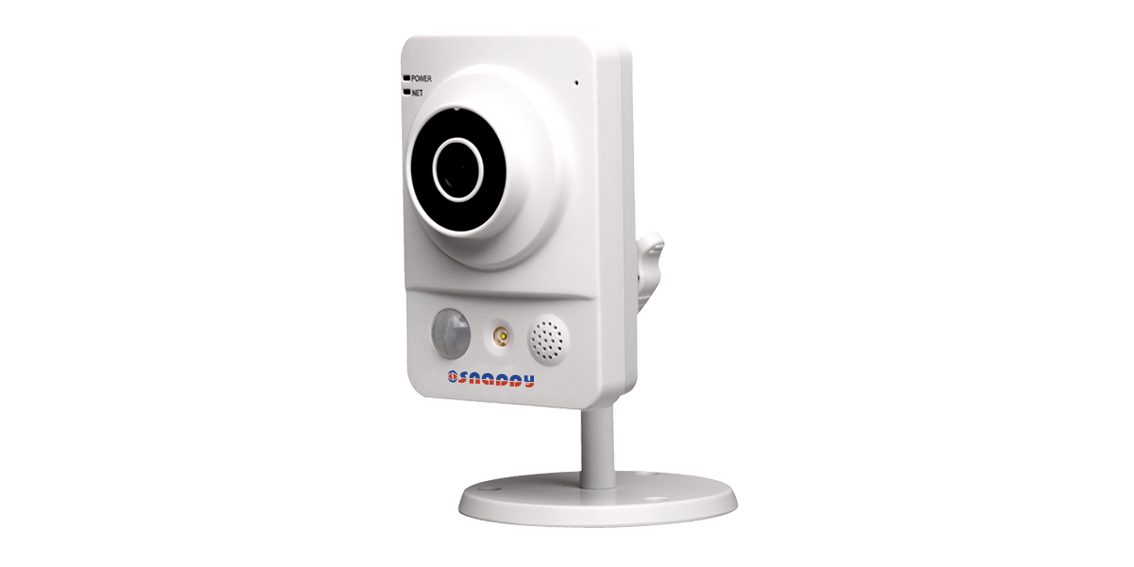

1.3MP Full HD Cube Camera

Model : IP-C103FC-P

Model : IP-C103FC-SDP ( with Micro SD memory & PoE )

Model : IP-C103FC-SDW ( with Wi-Fi )

Camera
Image Sensor	1/3” 1.3Megapixel Aptina CMOS
Effective Pixels	1280(H)x960(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3~1/10000 (PAL), Auto/Manual 1/4~1/10000(NTSC)
Min. Illumination	0.1lux/F1.8(color),
S/N Ratio	>50dB
Camera Features
Max. IR LEDs Length	10m
Day/Night	Auto(Electronic) / Color / B/W
White Balance	BLC / HLC / DWDR
Gain Control	Auto/Manual
Noise Reduction	2D
Privacy Masking	Up to 4 areas
Lens
Focal Length	3.6mm
Max Aperture	F1.8
Focus Control	Manual
Angle of View	70°
Mount Type	Board-in Type
Video
Compression	H.264/MJPEG
Resolution	1.3M(1280x960)/720P(1280x720)/D1/CIF
Frame Rate
Main Stream	1.3M(1~15fps)/720P/D1(1~25/30fps)
Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate	H.264: 32K ~ 8096Kbps,MJPEG:32K~12288Kbps

Audio
Compression	IP-C103FC-P: N/A IP-C103FC-SDP , IP-C103FC-SDW: G.711a / G.711u (64kbps)/ PCM(128kbps)
Interface	IP-C103FC-P: N/A IP-C103FC-SDP , IP-C103FC-SDW: Built-in Mic, Built-in speaker
Network
Ethernet	RJ-45 (10/100Base-T)
Wi-Fi	IP-C103FC-P , IP-C103FC-SDP: RJ-45 (10/100Base-T) IIP-C103FC-SDW: RJ-45(10/100Base-T) / Wi-Fi(802.11b/g)
Protocol	IPv4/IPv6, HTTP, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF	ONVIF Ver. 2.0
Max. User Access	10 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	IP-C103FC-P: N/A IIP-C103FC-SDW , IP-C103FC-SDP: Micro SD, Max 32GB
Alarm	IP-C2FC-P: N/A IP-C103FC-SDP , IIP-C103FC-SDW: 1/1 channel In/Out
PIR Sensor Range	Up to 6m
General
Power Supply	IP-C103FC-P , IP-C103FC-SDP: DC12V,PoE(802.3af) IIP-C103FC-SDW: DC12V
Power Consumption	<4W
Working Environment	-10°C~+50°C, 10%~90%

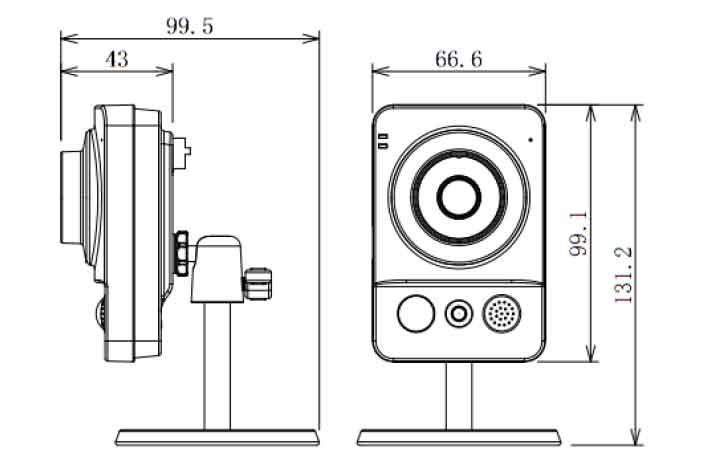

Dimensions(W×D×H)	66.6×43mm×131.2
Weight	0.35kg (0.4kg with bracket)
