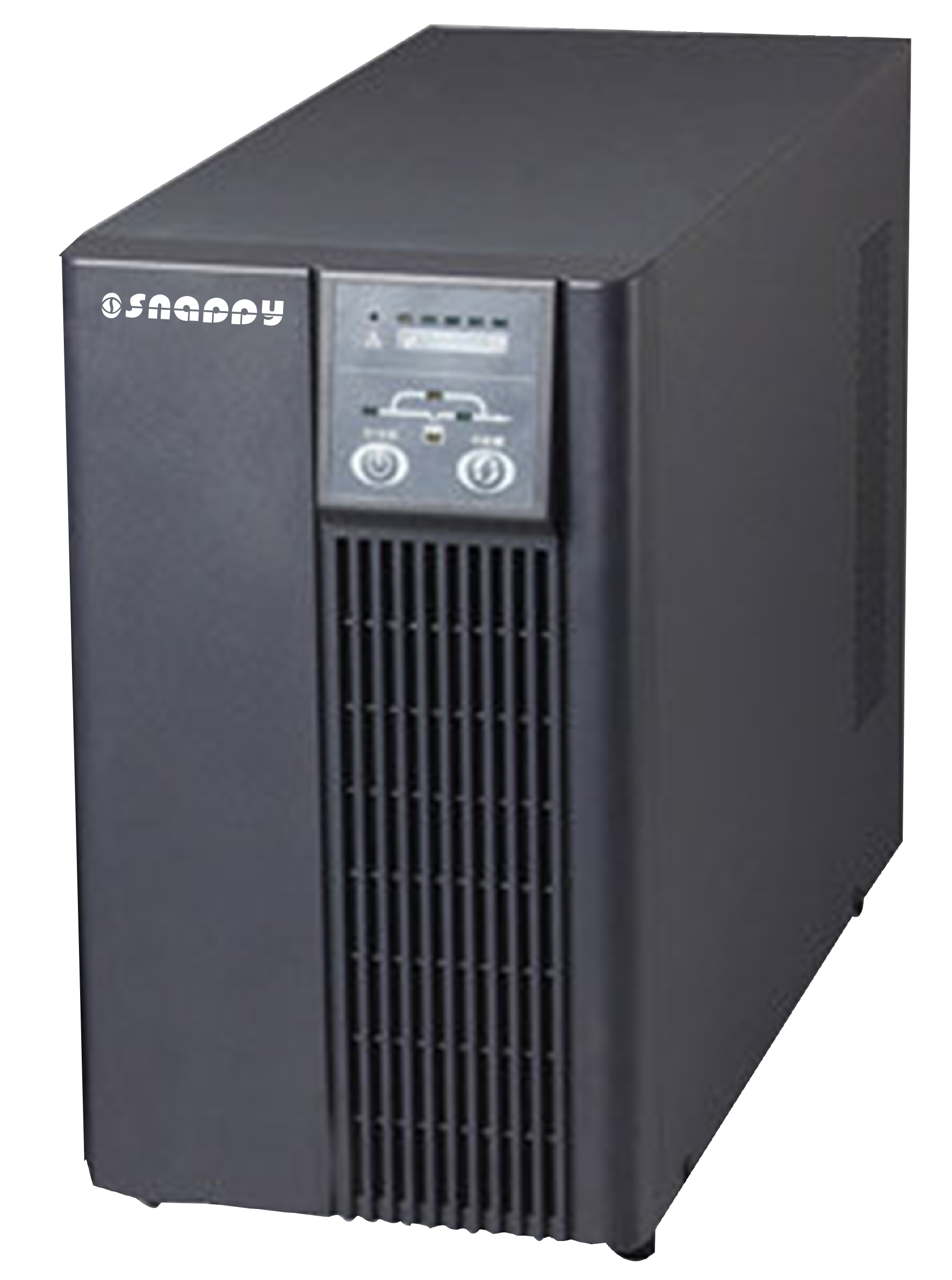

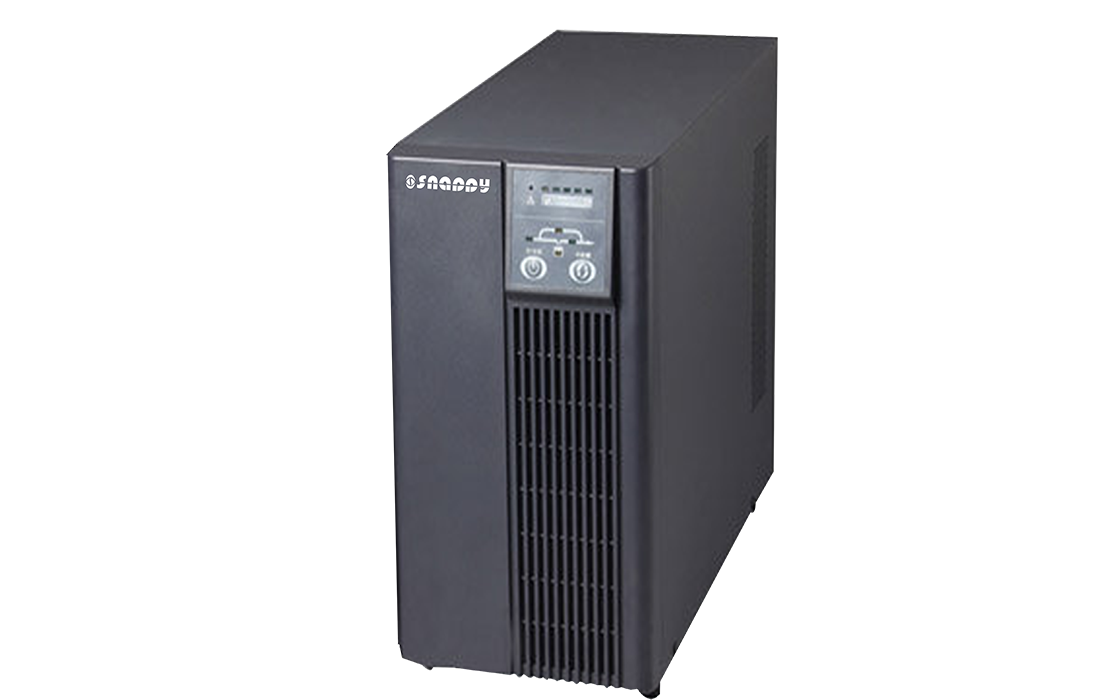

3KVA

Model : G8K8

UPS Model	G8K8
Nominal Output Capacity	3KVA / 2400W
AC Input
Input Voltage Range	115~300VAC ± 5
Input Frequency Range	(45~55) ± 0.5Hz
Bypass Voltage	80VAC x (1 ± 5%) ~ 285VAC x (1 ± 5%)
Battery Input
Battery Unit Voltage	96V
Battery Installation	External
Backup Time (Half / Full)	Half Load ≥ 10mins; Full Load ≥ 5mins (Standard Type)
Maximum Power Input Impact Current	< 150% of Nominal Current
Battery Charge Time	Long Time Run UPS Depends On The Capacity of External Battery Strings
AC Output
Output Voltage	220VAC ± 3% (Inverter Output)
Output Frequency	50 ± 5Hz (AC Input Normal) , 50Hz ± 1% (AC Input Abnormal)

Wave Form	Sine Wave THD < 3% (Linear Load) , Sine Wave THD < 8% (Non-Linear Load)
Output Power Factor	0.8
Overload Capability	130% Continuous Load: Not Less Than 30S, Recovery Point: 90% Load
Output Current Crest Factor	3:01
Transfer Time	0ms
General
Communication & Monitoring Function	RS232 (optional 485), Dry Contact, Intelligent Slot (Expandable SNMP, SMS, And Other Monitoring Mode)
Tower Mount
Net Weight	11.50kgs
Dimension (D x W x H)	318 x 190 x 433mm

Click below link to download the catalog for the 3KVA - Model : G8K8

Download Catalog
