Fever & Face Recognition, Digital Signage, Mask & Sanitizer Dispenser

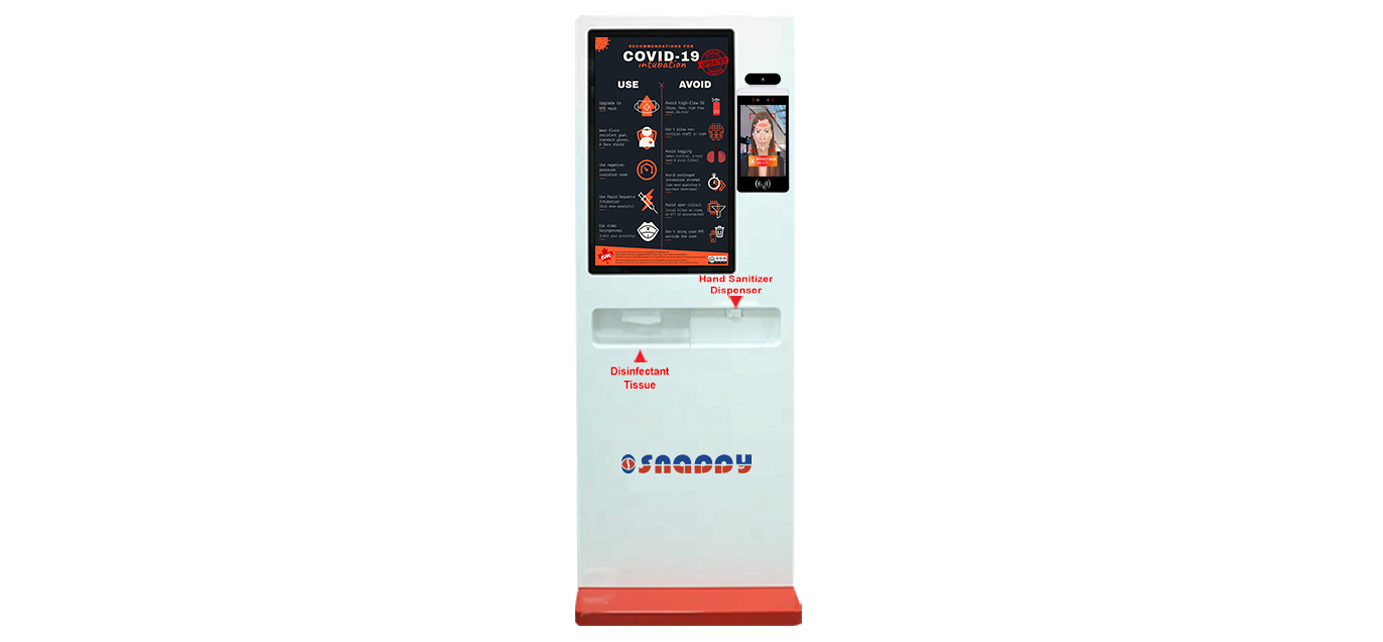

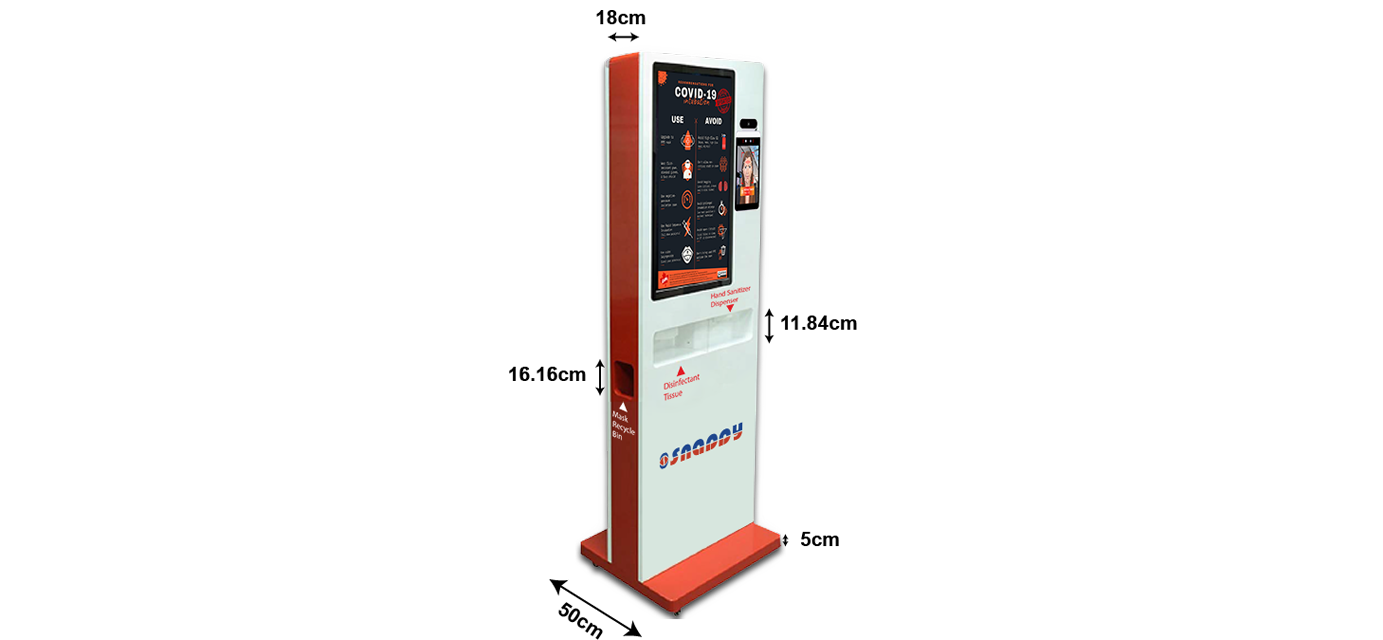

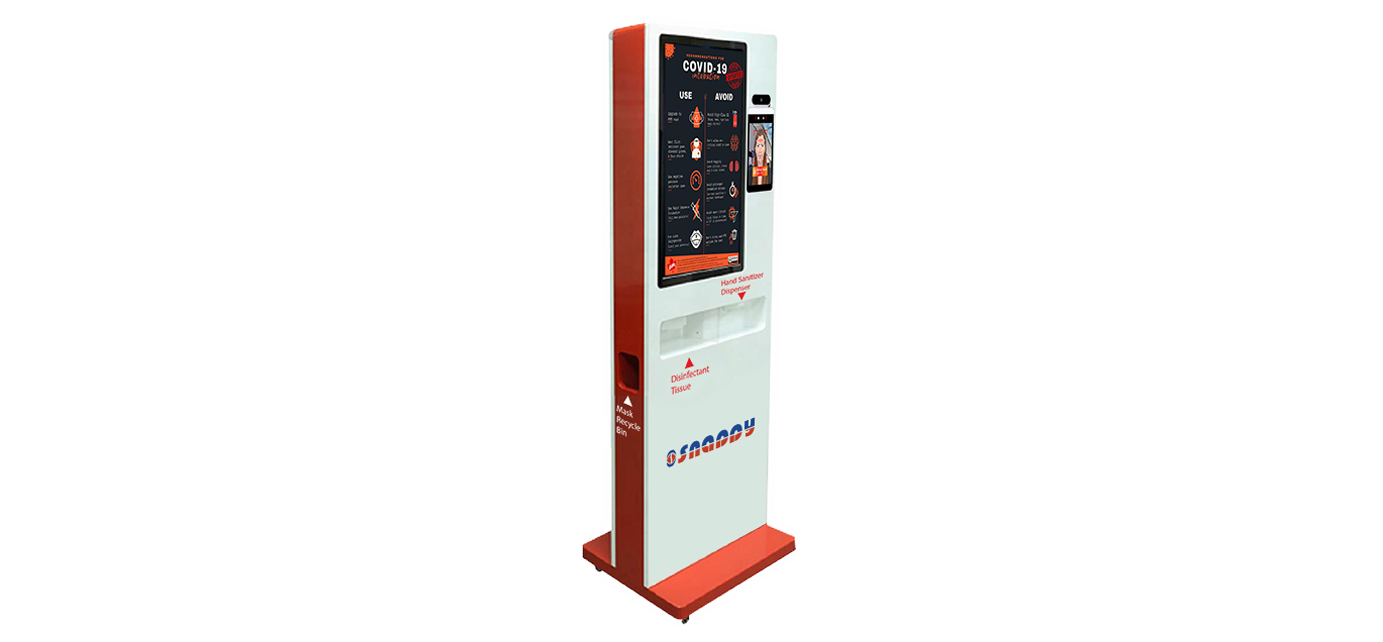

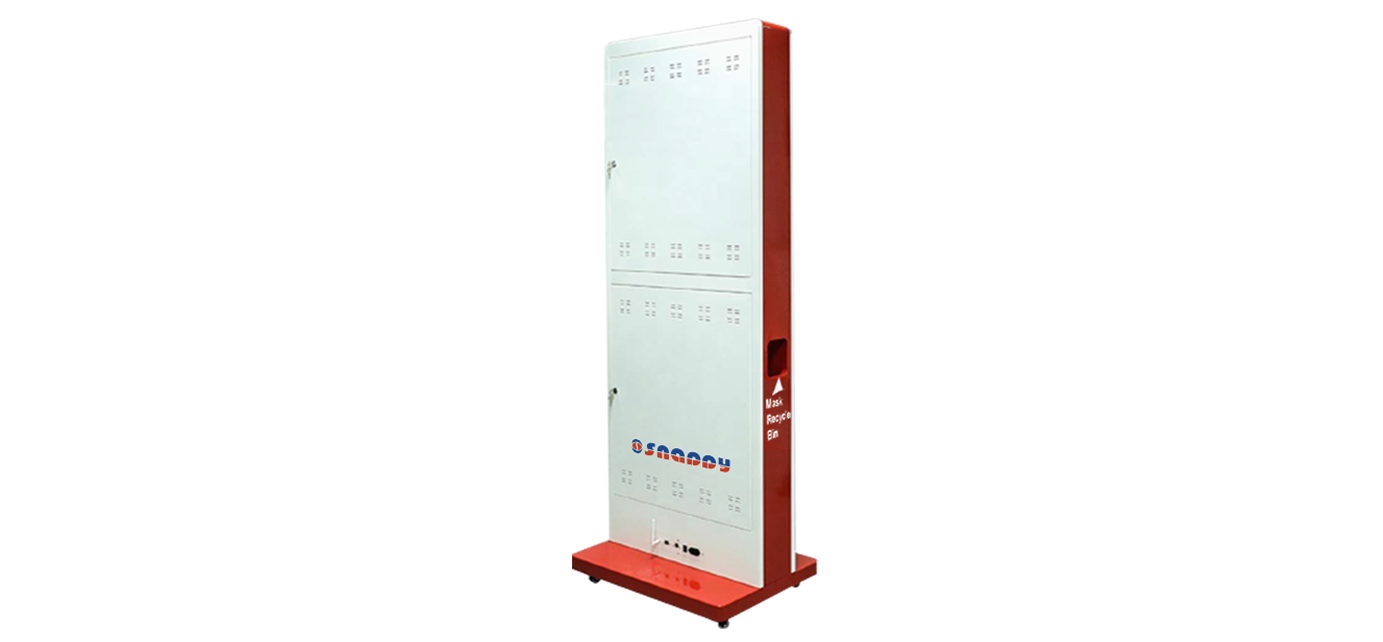

Model : ST5-32

Excellent design with apple shape, aluminum edging.
Dual panels: 32” and 8” brand new original panel.
Customized against COVID19 to avoid cross infection. (Fixed IP or domain name are optional).
Built in sensitive temperature measure sensor.
Built in Face recognition camera.
Built in auto spray sanitizer for hand wash.
Built in Tissue box available.
Built in face mask recycle bin to reduce pollution.
Built in sensitive 10 points capacitive touch (32” size screen).
Android OS, support to customize Windows OS.
Color available: Blue and white, can customize.
Support Ethernet, WIFI network, and can customize 3/4G function.
Support to work together with HD-DS signage software, can central manage temperature data.
Industrial level design, support 24/7 working.
CE&RoHS certified.

Display :
Display Screen	32” TFT Panel with LED backlight
Display Ratio	16.9
Color	RK3066 16.77M Colors
Display Area	698.4 x 392.85mm
Resolution	1920 x 1080 4.2
Brightness	Cortex-A9，350cd/m2 1.6GHZ
Response Time	1GB
Less than 5ms	8GB
Contrast	3000.1
View Angle	178 left and right, up and down
Life time	Over 60,000hrs
Temperature Sensor :
Temperature sensor	Temperature sensor x 1
Type	Infrared Temperature sensor
Testing Range	10°C to 43°C
Testing Accuracy	802.11 b/g/n
Testing Distance	Up to 1M (Suggested 50cm) 11.1
Alarm	Red Alarm if temp exceed setting amount temp; Green light for normal temperature
Auto Spray Sanitizer :
Type	Type Auto Spray
Sensor	IR Sensor
Induction Distance	4 to 6 cm
Spray Liquid	Suggest Medical Alcohol
Response Time	Less than 1 Second
Type	Type Auto Spray
Life Time	Up to 50000 times
Liquid Output Size	Adjustable
Tissue Box :
Tissue Box	Tissue Box x 1 ( For Dry Hand if Needed )
Mask Recycle Bin :
Mask Recycle Bin	Face Mask Recycle Bin x 1

Face Recognition Camera :
Camera Resolution	2 million pixel
Type	Binocular wide dynamic camera
Focusing Distance	50-150m
White balance	Auto
Accuracy	Can recognize even people wear face mask
Android Cpu MotherBoards :
CPU	Quad core CPU, RK 3288
RAM	DDR3 2G
Type	Type Auto Spray
Storage	Flash Memory 8G (Can Expand to 32G)
Type	Type Auto Spray
Main Board	Integrated Graphic Card
Network Card	10/100M/1000M adaptive card
WIFI	Support WIFI
OS	Android OS 6.0 Above
Capacitive Touch Screen :
Touch type	Capacitive Touch
Points	10 Points
Touch Recognition	1.5mm (Finger, Touch Pen, Opaque Objects)
Scanning Accuracy	4096 x 4096
Scanning Rate	200hz
Reponse Time	Less than 5ms
Communication	USB 2.0
Life Time	Over 80,000,000 touches
Interface :
USB	USB 2.0 x 2
COM	COM x 1
HDMI Output	HDMI x 1
Mic Audio Output	Mic Audio x 1
Line Audio Output	Line x 1
Network	RJ 45 x 1
