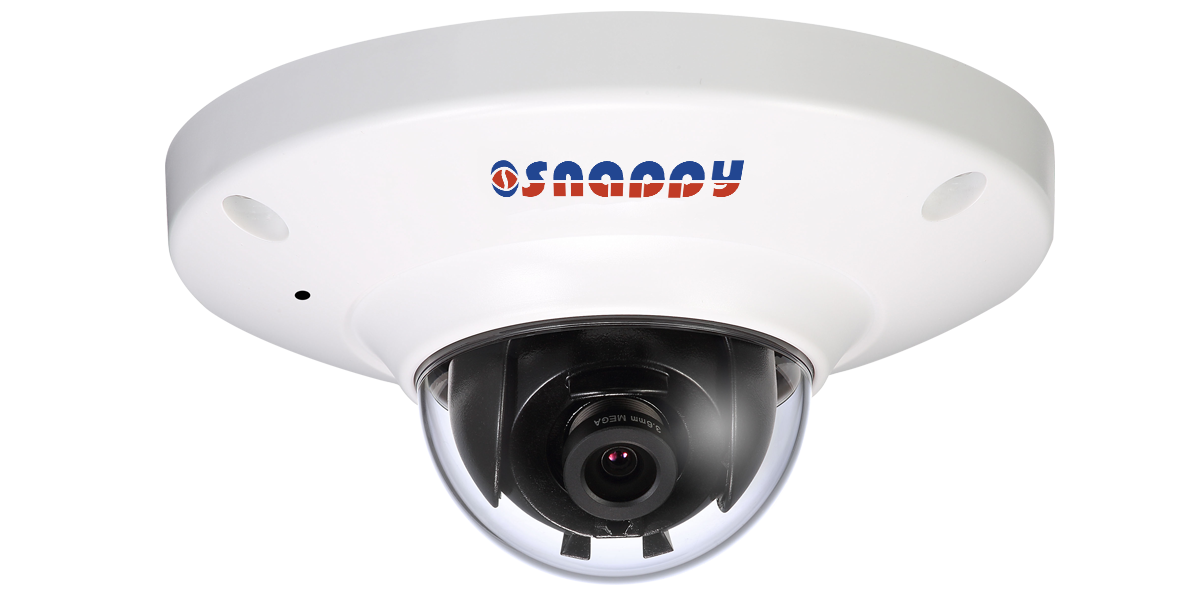

1.3MP IR Water-Proof & Vandal-Proof Camera
Features Technical Specifications High Resolution Images
1.3MP IR Water-Proof & Vandal-Proof
Model : IP-D5103FC

Features

  • 1/3” 1.3Megapixel progressive scan Aptina CMOS
  • H.264 & MJPEG dual-stream encoding
  • Max 25/30fps@1.3M(1280×960)
  • Day/Night(ICR), 3DNR, Auto iris, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 3.6mm fixed lens (2.8mm,6mm optional)
  • Micro SD memory, IP66, IK10, PoE

Technical Specifications

Camera
Image Sensor 1/3” 1.3Megapixel progressive scan CMOS
Effective Pixels 1280(H)x960(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3(4)~1/10000
Min. Illumination 0.1lux/F1.8(color)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length N/A
Day/Night Auto(Electronic)/Color/B/W
Backlight Compensation Off/BLC/HLC/DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm (2.8mm,6mm optional)
Max Aperture F1.8(F2.0, F1.8)
Focus Control Manual
Angle of View H: 70°(89°/46.5°)
Lens Type Fixed Lens
Mount Type Board-in Type
Video
Compression H.264/ MJPEG
Resolution 1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/ CIF(352×288/352×240)
Frame Rate
Main Stream 1.3M/720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 32K ~ 8192Kbps
Audio
Compression G.711a/G.711u/PCM
Interface 1/1 channel In/Out
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF Profile S
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
RS485 N/A
Alarm 2/1 channel In/Out
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption Max 2.5W
Working Environment -20°C~+60°C, Less than 95% RH
Ingress Protection IK10
Vandal Resistance IP66
Dimensions Φ110mm×54mm
Weight 0.25kg

Application

1.3MP IR Water-Proof & Vandal-Proof
