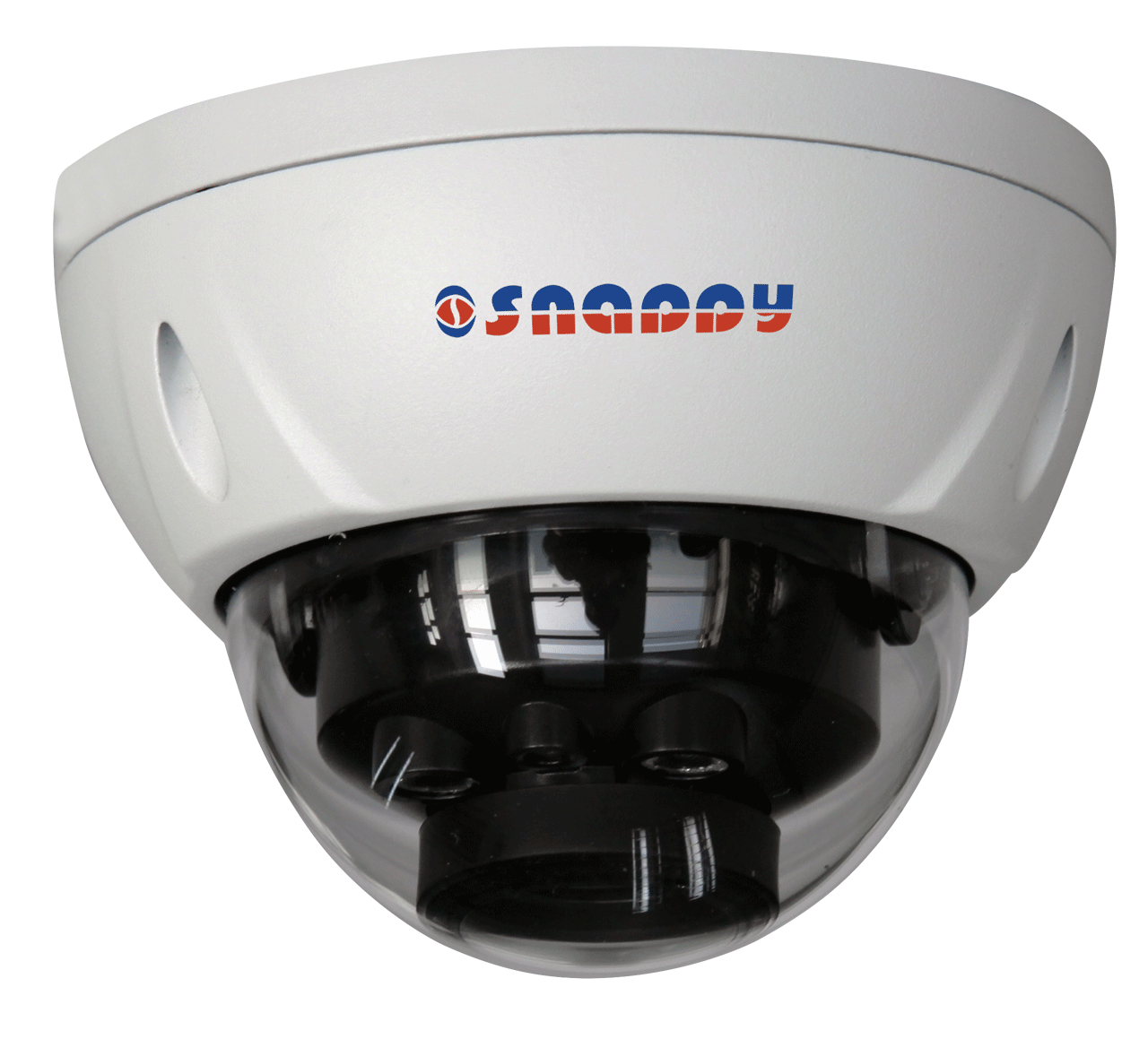

Dome 3MP Camera
Model : IP-D3MVFC

Features

  • 1/3” 3Megapixel progressive CMOS
  • H.264 & MJPEG dual-stream encoding
  • Max 20fps@3M(2048x1536) & 25/30fps@1080P(1920 x1080)
  • DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, Snappy Universal CMS
  • 2.7~12mm motorized varifocal lens
  • Max. IR LEDs Length 30m
  • IP66, IK10, PoE

Technical Specifications

Camera
Image Sensor 1/3” 3Megapixel progressive CMOS
Effective Pixels 2048(H)x1536(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
Minimum Illumination 0.01Lux/F1.4(Color); 0Lux/F1.4(IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Lens Type Manual/Fixed Iris
Mount Type Board-in Type
Focal Length 2.7mm~12mm
Max. Aperture F1.4
Angle of View H: 92°~28°
Focus Control Manual
Video
Compression H.264/ H.264H/ MJPEG
Streaming Capability 2 Streams
Resolution 3M(2048x1536)/1080P(1920x1080)/1.3M(1280× 960)/720P(1280× 720)/D1(704× 576/704× 480)/CIF(352× 288/352× 240)
Frame Rate
Main Stream 3M(1 ~ 20fps)/1080P (1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264H: 40K ~ 8192Kbps; MJPEG: 40K~16384Kbps
Audio
Compression N/A
Interface N/A
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour
ONVIF ONVIF, PSIA, CGI
Max. User Access 20 Users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption <4.5W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP66
Vandal Resistance IK10
Dimensions φ122mm× 89mm
Weight 0.5kg

Downloads

1

Catalog : Dome 3MP Camera

Click below link to download the catalog for the Dome 3MP Camera - Model : IP-D3MVFC

Download Catalog
2

Application

Dome 3MP Camera
