Small Bullet IR 2MP Camera

Model : IP-B2FC-W

Camera
Image Sensor	1/3” 3Megapixel progressive scan CMOS
Effective Pixels	2048(H)x1536(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3(4)~1/10000
Min. Illumination	Color: 0. 1Lux/F1.6; 0Lux/F1.6 (IR on)
S/N Ratio	More than 50dB
Video Output	N/A
Camera Features
Max. IR LEDs Length	30m
Day/Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC /HLC /DWDR
White Balance	Auto/Manual
Gain Control	Auto/Manual
Noise Reduction	2D
Privacy Masking	Up to 4 areas
Lens
Focal Length	3.6mm (6mm optional)
Max Aperture	F1.8(F1.6)
Focus Control	Manual
Angle of View	H: 72°(44°)
Lens Type	Fixed lens
Mount Type	Board-in Type
Video
Compression	H.264H/H.264B/H.264/ MJPEG
Resolution	1080P(1920× 1080)/720P(1280× 720)/D1(704× 576/704× 480)/CIF(352× 288/352× 240)
Frame Rate
Main Stream	1080P(1 ~ 25/30fps)
Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate	H.264H: 16K ~ 8192Kbps

Audio
Compression	N/A
Interface	N/A
Network
Ethernet	RJ-45 (10/100Base-T)
Wi-Fi	Wi-Fi(IEEE802.11b/g/n)
Wi-Fi Range	50m(open field)
Protocol	IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP,SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS
Compatibility	ONVIF, CGI
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	N/A
RS485	N/A
Alarm	N/A
PIR Sensor Range	N/A
General
Power Supply	DC12V
Power Consumption	<7W
Working Environment	-30°C~+50°C, Less than 95%RH
Ingress Protection	IP66
Vandal Resistance	N/A

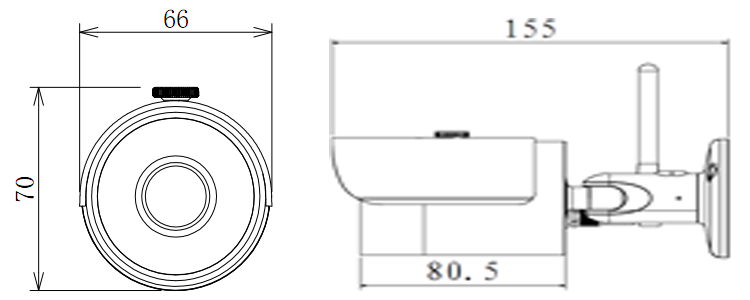

Dimensions	Φ70mm× 66mm× 155mm
Weight	0.42Kg
