Mini Dome IR PT 2MP Camera
Model : IP-MD2FC-WPT

Features

  • 1/2.8” 2Megapixel progressive scan CMOS
  • H.264 & MJPEG dual-stream encoding
  • Max 25/30fps@1080P
  • Day/Night(ICR), 3DNR, AWB,AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 100°/s preset speed, ±180° Pan range, 90°Tilt range
  • 3.6mm fixed lens
  • Max. IR LEDs Length 15m
  • Wi-Fi support
  • Built-in Mic
  • DC12V

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels 1920(H)x1080(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3(4)~1/100000
Min. Illumination 0.01Lux/F1.2(color)
S/N Ratio More than 50db
Video Output N/A
Camera Features
Max. IR LEDs Length 15m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation Off/BLC/HLC/DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Digital Zoom 3x
Lens
Focal Length 3.6mm
Max Aperture F1.2
Focus Control Manual
Angle of View H:88°
Lens Type Fixed lens
Mount Type Board-in Type
PT
Pan/ Tilt Range Pan: 0°~± 180°; Tilt: 0°~90°
Preset Speed 100°/s
Preset 25
Video
Compression H.264/H.264H/MJPEG
Resolution 1080P(1920× 1080) / 720P(1280× 720) /D1(704× 576/704× 480) / CIF(352× 288/352× 240)
Frame Rate
Main Stream 1080P/720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 32K ~ 8192Kbps
Audio
Compression G.711a/G.711u/PCM
Interface Bulit-in Mic
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi Wi-Fi(IEEE802.11b/g/n)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour
Compatibility ONVIF PSIA CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot N/A
RS485 N/A
PIR Sensor Range N/A
General
Power Supply DC12V
Power Consumption <5W
Working Environment -30℃~+50℃, Less than 95% RH
Ingress Protection N/A
Vandal Resistance N/A

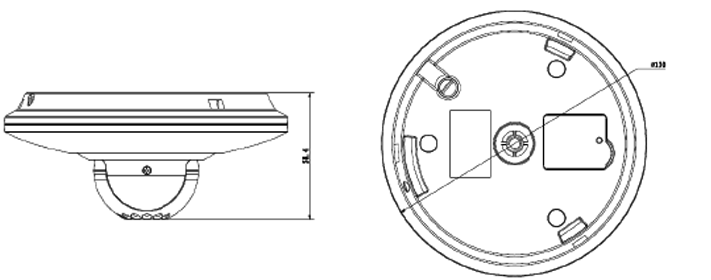

Dimensions Φ130mm×58.4mm
Weight 0.25kg

Application

1

Application

Mini Dome IR PT 2MP Camera
