POE Switch - 24P-POE-L3
Features Technical Specifications Downloads High Resolution Images

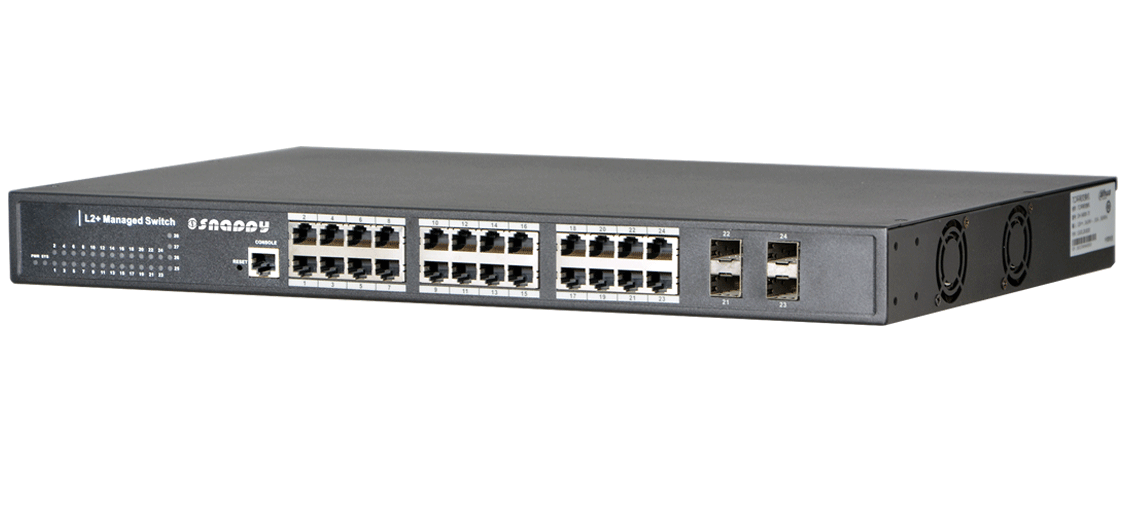

POE Switch - 24P-POE-L3
Model : 24P-POE-L3

Features

1

Perfect Reliability Protection Mechanism

  • It can implement flow classification and speed limit upon the packet which issent to CPU via CPU protection strategy, which is to avoid illegal packet causing resource consumption upon CPU
  • Support several spanning tree protocols such as STP, RSTP, MSTP and etc, which can realize fast convergence and improve fault-tolerant capability
  • Support industrial ERPS spanning protocol, whose convergence time is within millisecond, which guarantees no interruption for services. Besides, the protocol is simple and reliable, which makes it greatly convenient for users to manage and plan network
  • Support virtual router redundancy protocol VRRP
2

Convenient Management and Maintenance

  • It can implement simple and convenient operation upon various functions of the switch via easy visual WEB interface (support http and https protocol)
  • Support SNMP protocol to configure management for the device, provide convenience about centralized device management for small andmedium-sized enterprises
  • Support CLI configuration, manage via Telnet and Console port, which is suitable for professional network managers
  • Support SSH2.0 and other encryption modes, make management much safer; Support NTP clock protocol, which can sync network time automatically
3

Perfect Security Control Strategy

  • The security application scene for switch has to meet higher performance requirements
  • DH-PFS6428-24T not only supports three-layer routing functions, also owns a certain security protection strategy, such as IP source protection, port isolation, ARP inspection and ACL control list etc.Support specific ARP intrusion detection function
  • effectively prevent increasingly popular “ARP cheat attack” implemented by hacker or attacker via ARP message
  • Support IP Source Guard features
  • prevent illegal address counterfeit including MAC cheat, IP cheat, MAC/IP cheat and Dos attack brought by large flow address counterfeit
  • .Provide DHCP snooping function, it can realize to snoop the MAC address, IP address and various information of access users via creating and maintaining DHCP Snooping binding table, which has solved the IP and port tracking of DHCP users.Support user IP+MAC address certification based on port, 802.1X certification based on port, remote Radius.
4

Rich interface type, flexible port extension

  • DH-PFS6428-24T owns four SFP+ ports, which can satisfy the network requirement of high-speed 10G development.
5

Powerful Processing Capacity

  • DH-PFS6428-24T provides exchange capacity up to 392Gbps, port full linear filter forward 96Mpps
  • Guarantee large flow data forward of backbone network without block

Technical Specifications

Model 24P-POE-L3
Interfaces 10/100/1000BASE-T port x 24 10GE SFP+/GE SFP port x 4
Management Ports One Console port
Reset Button One Restore Factory Default Button
Switching Capacity 392Gbps
Packet Forwarding Rate 96Mpps
Working Temperature -10~55°C
Storage Temperature -40~70°C
Operating Humidity 5%~95% Non-condensing
Dimensions 440(L)×285(W)×44.5(H)mm
Weight <6Kg
Input Voltage AC: 110~240V/50~60Hz (Dual power)
Power Consumption <50W
Protocol Standard IEEE 802.3ad,IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3az
MAC Table 32K
Reset Button 4K
Port-based VLAN
802.1Q Standard VLAN
MAC-based VLAN
Protocol-based VLAN
Operating Humidity STP
RSTP
MSTP
Loop Protection ERPS
Port Aggregation Up to 14 aggregation groups, and up to 8 GE ports for each group
LACP, Manual aggregation
Mirroring Support many-to-one port mirroring, no limit for the quantity of mirroring source port
Support 4 mirroring groups
Flow Control Support half-duplex based on back pressure type control
Support full duplex based on PAUSE frame
Port Speed Limit Support input/output bandwidth management based on port
Redundancy backup VRRP
IP Routing Static Routing
RIP, OSPF, BGP
Multicast IGMP Snooping
MVR (Multicast VLAN Registration)
DHCP DHCP Client
DHCP Server
DHCP Snooping
Storm Suppression Support suppression upon broadcast, multicast, unicast
Security Features Hardware supports IP ACL,MAC ACL, VLAN ACL
Hardware supports IP+MAC binding based on port
Support IP Source Guard
Support ARP Detection
Support IEEE802.1x port authentication
Support Radius authentication
Support the user classification management and password protection
QOS SP(Strict Priority)
WRR (Weighted Round Robin)
802.1p
System Maintenance Support the configuration file upload/download
Support the updated packet upload
Restore default configuration via WEB
Support system logs
PING
Network Management WEB(http and https protocol)
CLI
Telnet
SSH 2.0
SNMP
RMON
LLDP
Support the NTP client

Downloads

1

Catalog : POE Switch - 24P-POE-L3

Click below link to download the catalog for the POE Switch - Model : 24P-POE-L3

Download Catalog
