1MP HD Cube Camera
Features Technical Specifications Application High Resolution Images

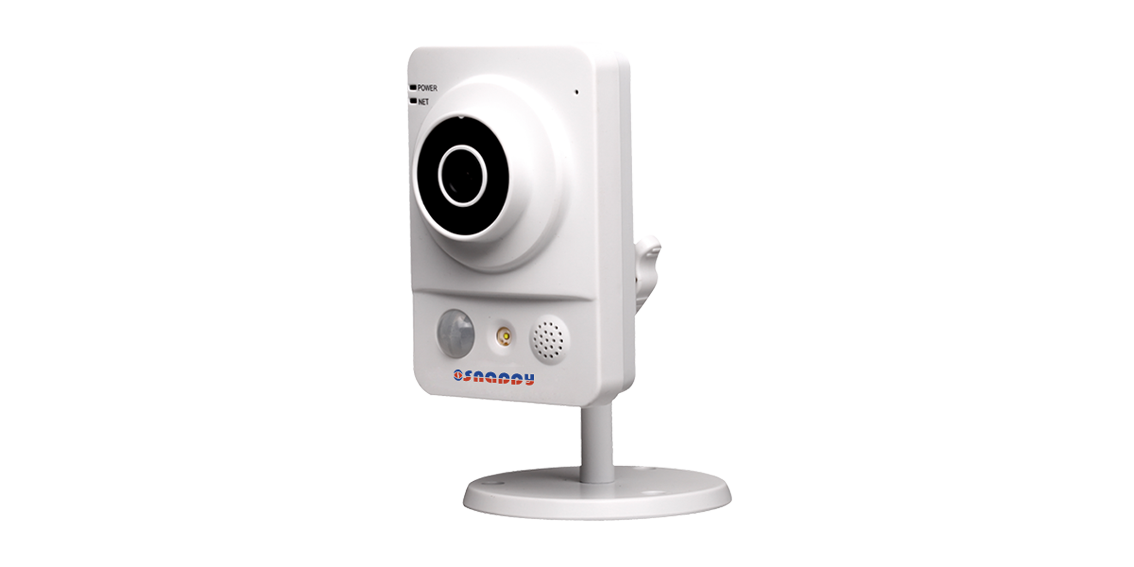

1MP HD Cube Camera
Model : IP-C1FC

Features

  • 1/4” 1Megapixel CMOS
  • H.264 & MJPEG dual-stream encoding
  • Max 25fps@720P(1280×720)
  • DWDR, Day/Night, 3DNR, Auto iris, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 3.6mm fixed lens
  • PIR sensor range 6m (for KW12(W) only)

Technical Specifications

Camera
Image Sensor 1/4” Progressive scan CMOS
Effective Pixels 1280(H)x720(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000
Min. Illumination 0.1lux/F1.2(color)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 10m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm
Max Aperture F1.8
Focus Control Manual
Angle of View 70°
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264/MJPEG
Resolution 720P(1280x720)/D1/CIF
Frame Rate
Main Stream 720P(1~25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 56K ~ 8192Kbps
Audio
Compression G.711a / G.711u / PCM
Interface Built-in Mic
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi Wi-Fi (for KW10/12W only)
Protocol IPv4/IPv6, HTTP, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,FTP, QoS, Bonjour
Compatibility ONVIF Profile S
Max. User Access 10 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V
Power Consumption <4W
Working Environment -30°C~+60°C, Less than 95%RH
Ingress Protection N/A
Vandal Resistance N/A

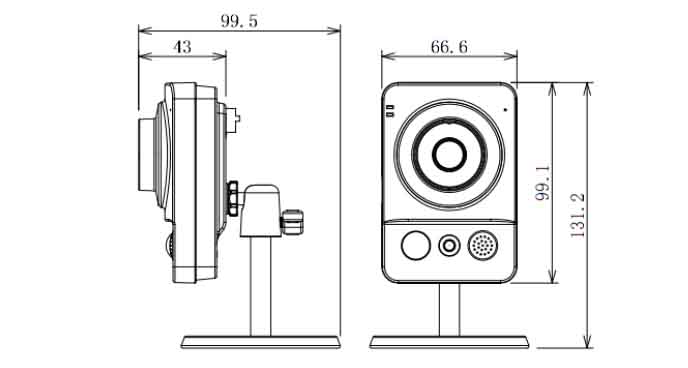

Dimensions(W×D×H) 66.6mm×99.5mm×131.2mm
Weight 0.35Kg (0.4kg with bracket)

Application

1

Application

1MP HD Cube Camera
