Mini Dome IR 2MP Camera
Features Technical Specifications Application High Resolution Images
Mini Dome IR 2MP Camera
Model : IP-MD2IRFC-W

Features

  • 1/3” 3Megapixel progressive scan CMOS
  • H.264&MJPEG dual-stream encoding
  • 25/30fps@1080P(1920×1080
  • DWDR, Day/Night(ICR), AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & DMSS
  • 3.6mm fixed lens (2.8mm, 6mm optional)
  • Max. IR LEDs Length 30m
  • Smoke glass & transparent glass optional
  • Wi-Fi support
  • IP66, IK10, DC12V

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/3” 3Megapixel CMOS
Effective Pixels 2048 (H)x1536(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
Min. Illumination 0. 1Lux/F1.8(Color),0Lux/F1.8 (IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 2D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm (2.8mm, 6mm optional)
Max Aperture F1.8(F2.0,F1.6)
Focus Control Manual
Angle of View H:71.9°(90°/45°)
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264/ MJPEG
Resolution 1080P(1920× 1080) / 720P(1280× 720) / D1(704× 576/704× 480) /CIF(352× 288/352× 240)
Frame Rate
Main Stream 1080P/720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 16K ~ 8192Kbps
Audio
Compression N/A
Interface N/A
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi Wi-Fi(802.11b/g/n)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour
Compatibility ONVIF,CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V
Power Consumption < 4.5W
Working Environment 30°C~+50°C, Less than 95% R
Ingress Protection IP66
Vandal Resistance IK10

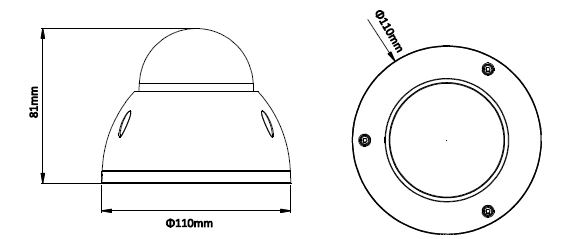

Dimensions Φ110mm× 81mm
Weight 0.39kg

Application

1

Application

Mini Dome IR 2MP Camera
