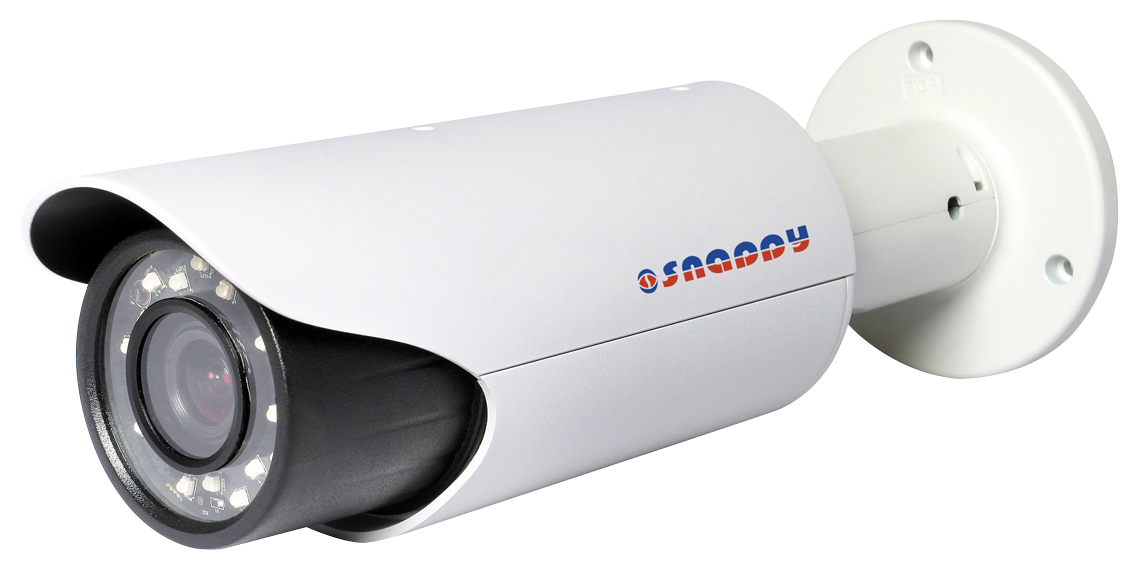

Motorized IR-Bullet 5mp Full HD Camera
Features Technical Specifications Application High Resolution Images
Motorized IR-Bullet 5mp Full HD Camera
Model : IP-B5MC-US

Features

  • 1/2.5” 5Megapixel progressive scan CMOS
  • H.264 & MJPEG dual-stream encoding
  • Max 12fps@5M(2560×1920)&25/30fps@1080P(1920×1080)
  • DWDR, Day/Night(ICR), 3DNR, Auto Iris, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & DMSS
  • 4~9mm vari-focal motorized lens
  • 2/1 alarm in/out
  • Max. IR LEDs length 30m
  • Micro SD memory, IP66, PoE

Technical Specifications

Camera
Image Sensor 1/2.5”5Megapixel CMOS
Effective Pixels 2560(H)x1920(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
Min. Illumination Color: 0. 01Lux/F1.6; 0Lux/F1.6(IR on)
S/N Ratio More than 50dB
Video Output 1 channel, BNC(1.0Vp-p/75Ω)
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 4~9mm motorized
Max Aperture F1.6
Focus Control Auto
Angle of View H: 82.4°(Wide)~36.1°(Tele)
Lens Type Motorized /Auto Iris(DC)
Mount Type Board-in Type
Video
Compression H.264 / MJPEG
Resolution 5M(2560×1920)/3M(2048×1536)/1080P(1920×1080)/720P(1280×720) / D1(704×576) / CIF(352×288)
Frame Rate
Main Stream 5M(1~12fps)/3M(1~20fps)/1080P/720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264H: 32K ~ 8192Kbps
Audio
Compression G.711a / G.711u/ PCM
Interface 1/1 channel In/Out
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
RS485 N/A
Alarm 2/1 channel In/Out
PIR Sensor Range N/A
General
Power Supply DC12V(AC24V optional), PoE(802.3af)
Power Consumption <8.5W
Working Environment -30°C~+60°C(-H: -40°C~+60°C), Less than 95%RH
Ingress Protection IP66
Vandal Resistance N/A

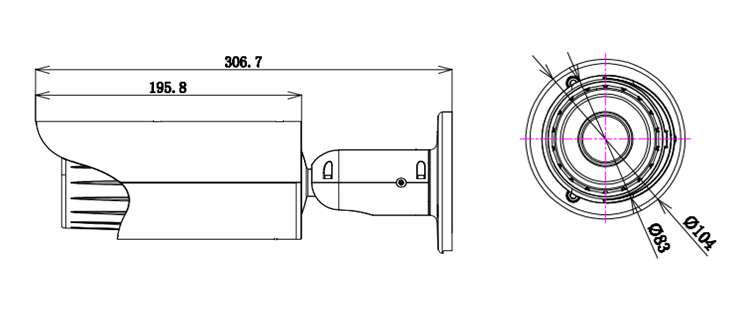

Dimensions ф104mm × 306.7mm
Weight 1.25Kg
