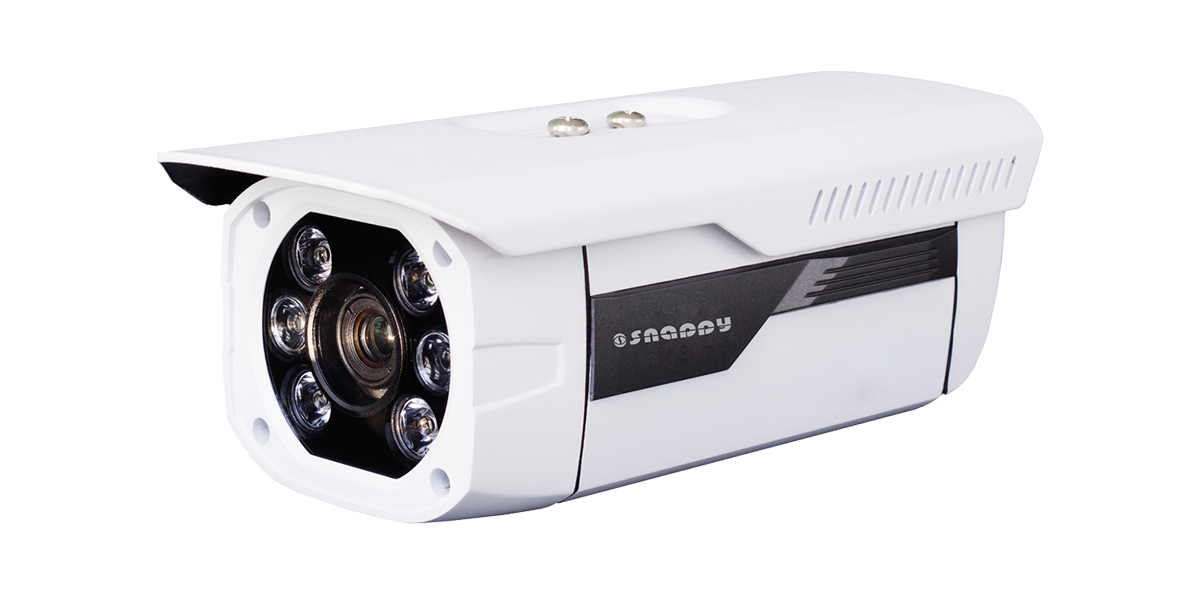

1.3MP ater-Proof IR Camera
Model : IP-B103VFC

Features

  • 1/3” 1.3Megapixel progressive scan Aptina CMOS
  • H.264 ,H.264H &MJPEG dual-stream encoding
  • 25/30fps@1.3M(1280×960)& 25/30fps@720P(1280×720)
  • DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 3.3~12mm varifocal lens, (7-22mm varifocal lens optional)
  • Max. IR LEDs Length 100m
  • IP66, PoE

Technical Specifications

Camera
Image Sensor 1/3” 1.3Megapixel progressive scan CMOS
Effective Pixels 1280(H)x960(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3(4)~1/10000
Min. Illumination 0. 01Lux/F1.4 (Color), 0Lux/F1.4(IR on)
S/N Ratio More than 50dB
Video Output 1 channel BNC(1.0Vp-p,75Ω)
Camera Features
Max. IR LEDs Length 50m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation Off/BLC/HLC/DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.3~12mm
Max Aperture F1.4
Focus Control Manual
Angle of View H: 75°~32.5°
Lens Type Manual/Auto Iris(DC)
Mount Type Board-in Type
Video
Compression H.264/ MJPEG
Resolution 1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/ CIF(352×288/352×240)
Frame Rate
Main Stream 1.3M/720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 32K ~ 8192Kbps
Audio
Compression G.711a/G.711u/PCM(-A)
Interface Built-in Mic(-A)
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF Profile S
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption Max 16W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP66
Vandal Resistance N/A

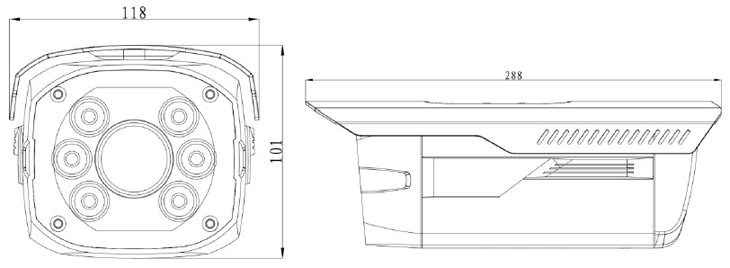

Dimensions 288.3mm×118.3mm×101mm
Weight 2.5kg

Application
