POE Switch - 8P-POE
Features Technical Specifications Downloads High Resolution Images

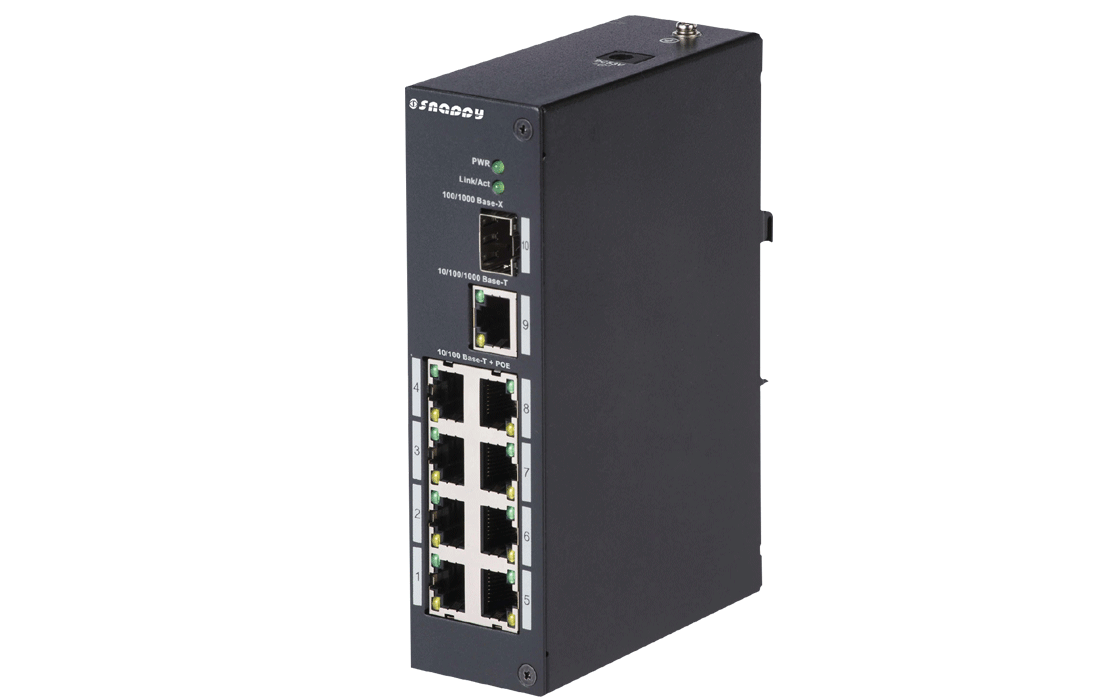

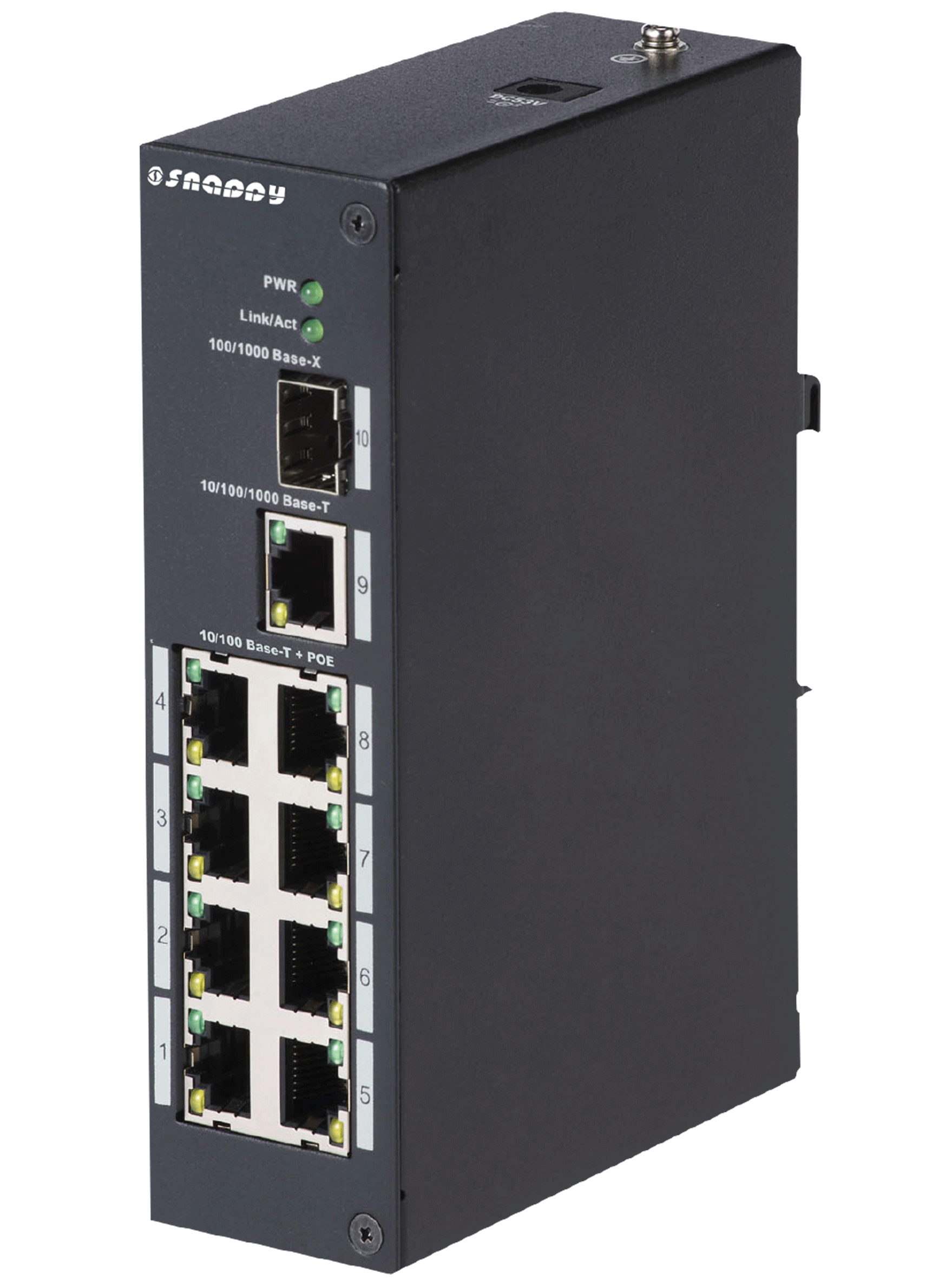

POE Switch - 8P-POE
Model : 8P-POE

Features

  • Two-layer industrial POE switch
  • MAC auto study and aging, MAC address list capacity is 8K
  • Support IEEE802.3af, IEEE802.3at standard
  • Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/ z and IEEE802.3X standards
  • Industrial wide temperature design

Technical Specifications

Model 8P-POE
Ethernet port 1*1000 Base-X, 1*10/100/1000 Base-T, 8*10/100 Base-T（PoE power supply)
PoE power consumption Each power ≤30W，Total≤93W
PoE protocol IEEE802.3af, IEEE802.3at
Exchange mode Store & forward
Application Humidity 10%－90%
Power Default DC53V power adapter
High&Low temperature -30°C~65°C
Weight 540g
Dimension (W x D x H ) 150mm×100mm×42mm

Downloads

1

Catalog : POE Switch - 8P-POE

Click below link to download the catalog for the POE Switch - Model : 8P-POE

Download Catalog
POE Switch - 8P-POE
