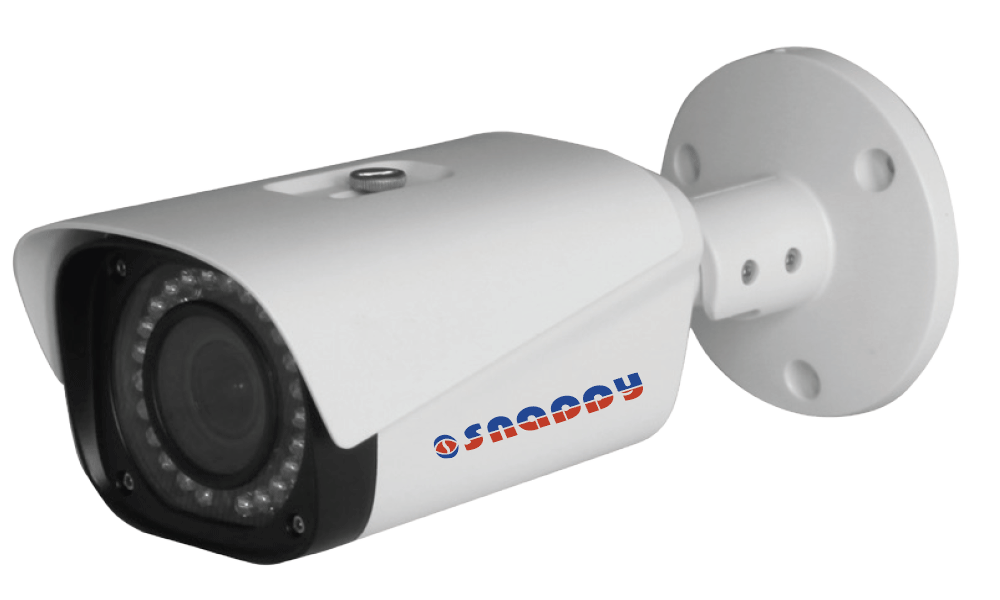

Bullet 2MP Water-Proof Camera - IP-B2VFC
Model : IP-B2VFC

Features

  • 1/2.8” 2Megapixel progressive CMOS
  • H.264&MJPEG dual-stream encoding
  • 25/30fps@1080P(1920x1080)
  • DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, Snappy Universal CMS
  • 2.7~12mm varifocal lens
  • Max. IR LEDs Length 30m
  • IP66, PoE

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels 1920(H)x1080(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/ 3(4)~1/10000s
Min. Illumination 0. 01Lux/F1.4 (Color), 0Lux/F1.4(IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 2.7mm~12mm
Max Aperture F1.4
Focus Control Manual
Angle of View H: 98°~ 30°
Lens Type Manual/ Fixed Iris
Mount Type Board-in Type
Video
Compression H.264/ H.264H/ MJPEG
Resolution 1080P(1920x1080)/720P(1280×720)/ D1(704×576/704×480) / CIF(352×288/352×240)
Frame Rate
Main Stream 1080P/960P/720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264H: 40K ~ 8192Kbps; MJPEG: 40K~16384Kbps
Audio
Compression N/A
Interface N/A
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP , HTTPS, SSL, TCP/IP , UDP , UPnP , ICMP , IGMP , SNMP , RTSP , RTP, SMTP, NTP , DHCP , DNS, PPPOE, DDNS, FTP , IP Filter, QoS, Bonjour
Compatibility ONVIF, CGI, PSIA
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V/PoE (802.3af)
Power Consumption < 4.5W,< 8.5W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP66
Vandal Resistance N/A
Dimensions 72mm×80mm×212.8mm
Weight 0.65kg

Downloads

1

Catalog : Bullet 2MP Water-Proof Camera

Click below link to download the catalog for the Bullet 2MP Water-Proof Camera - Model : IP-B2VFC

Download Catalog
