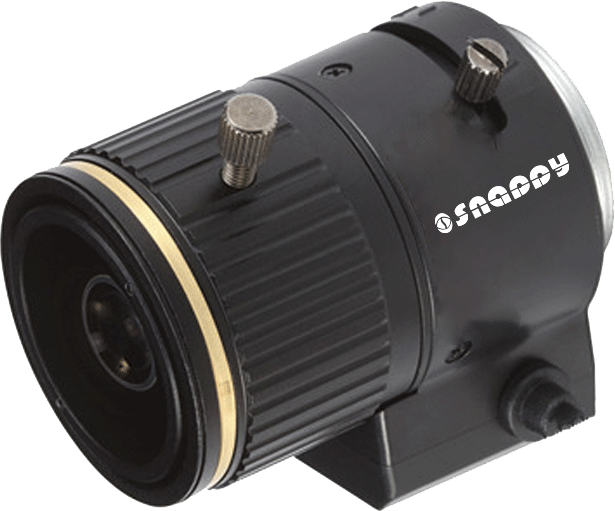

4MP VF Lens
Model : FYZ0171 - I

Technical Specifications

Model FYZ 0171 - I
Image format 1/2.7”
Focal length 2.7-12mm
Aperture F1.6
Field Angle
1/2.7” W: 137.8°(D)x102.6°(H)x74.3°(V)~T: 37.2°(D)x29.9°(H)x22.6°(V)
1/3” W: 120.1°(D)x91.3°(H)x66.3°(V)~T: 33.9°(D)x27.1°(H)x20.3°(V)
M.O.D. 0.3m
TV Distortion -69.58%(W)~-3.3%
IR Correction Yes
Lens Control
Focus Manual
Zoom Manual
Iris DC-Iris
Mount CS

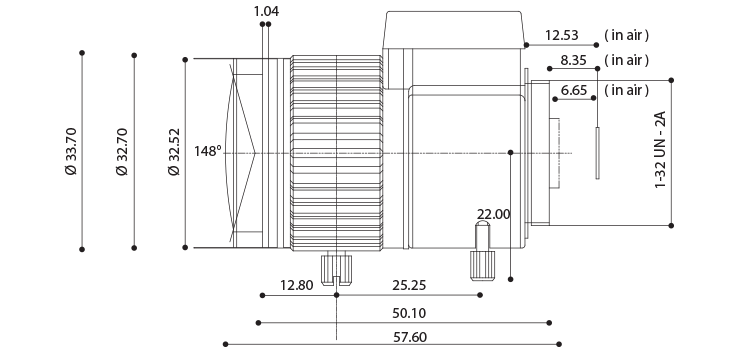

Dimension Ø33.7x57.6mm
Weight 73.5g
Operating temperature -30°C~+70°C
