| Video |
|
Compression
|
H.264 / MJPEG |
|
Resolution
|
1080P(1920×1080) /720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240 |
|
Frame Rate
|
|
Main Stream
|
1080P (1 ~ 25/30fps) / 720P(1~50/60fps)
|
|
Sub Stream1
|
D1/CIF(1 ~ 25/30fps)
|
|
Sub Stream2
|
720P/D1/CIF(1 ~ 25/30fps)
|
|
Bit Rate
|
H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps |
| Audio |
|
Compression
|
G.711a / G.711u (32kbps) / PCM (128kbps)
|
|
Interface
|
1/1 channel In/Out
|
| Intelligent Function |
|
Auto Tracking
|
Single-scene, multiple-scene, panorama-scene
|
|
IVS
|
Tripwire, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving and etc.
|
|
Tracking Trigger Mode
|
Manual / Auto (alarm triggered)
|
|
Tracking Trigger Event
|
Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc.
|
| Network |
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
Protocol
|
IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
|
ONVIF
|
ONVIF Profile S
|
|
Max. User Access
|
20 users
|
|
Smart Phone
|
iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
|
RS485
|
1 port |
|
Memory Slot
|
Micro SD, Max 64GB |
|
Alarm
|
7/2 channel In/Out |
| General |
|
Power Supply
|
AC 24V/5A |
|
Power Consumption
|
70W/90W(Laser /heater on)
|
|
Working Environment
|
-40ºC ~ 70ºC / Less than 95% RH |
|
Ingress Protection
|
IP66, All-metal aluminum alloy, 6000V anti-lightning surge |
|

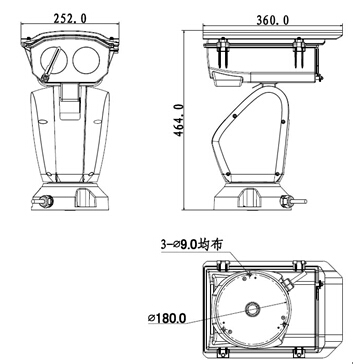

Dimensions(W×D×H)
|
252(mm) x 360 (mm) x 464 (mm) |
|
Weight
|
12.87Kg |
