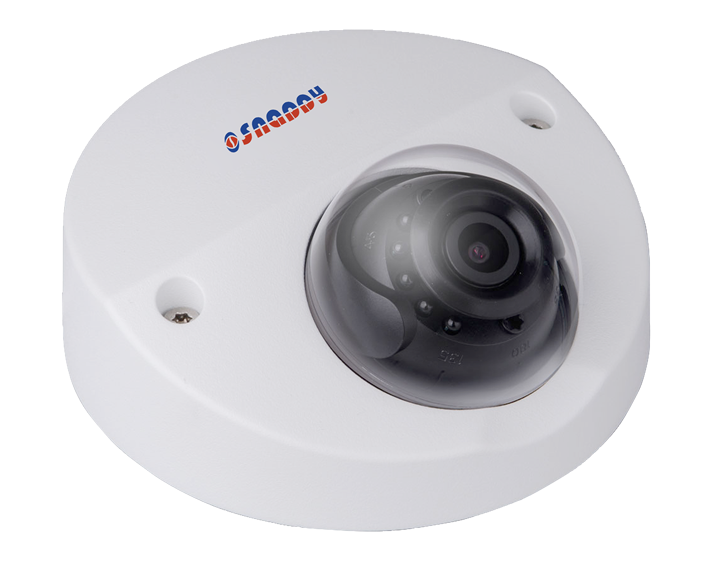

Dome Wedge Camera

Model : IP-MD1FC-W

Camera
Image Sensor	1/3” 1.3Megapixel progressive scan CMOS
Effective Pixels	1280(H)  960(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3(4)~1/100000s
Min. Illumination	0.01Lux/F2.0(Color),0Lux/F2.0 (IR on)
S/N Ratio	More than 50dB
Video Output	N/A
Camera Features
Max. IR LEDs Length	20m
Day/Night	Auto(ICR)/Color/B/W
Backlight Compensation	BLC / HLC / DWDR
White Balance	Auto/Sunny/Night/Outdoor/Customized
Gain Control	Auto/Manual
Noise Reduction	3D
Privacy Masking	Up to 4 areas
Lens
Focal Length	3.6mm(2.8mm,6mm optional)
Max Aperture	F2.0(F1.8/F2.0)
Focus Control	Manual
Angle of View	74°/86°/47°
Lens Type	Fixed lens
Mount Type	Board-in Type
Video
Compression	H.264/H.264B/H.264H/ MJPEG
Resolution	1.3M(1280x960)/720P(1280× 720)/ D1(704× 576/704× 480) /CIF(352× 288/352× 240)
Frame Rate
Main Stream	1.3M/720P(1 ~ 25/30fps)
Sub Stream	D1/CIF(1 ~ 25/30fps)
Third Stream	720P(1-14/7fps)
Bit Rate	H.264: 32K ~ 10Mbps
Corridor Mode	Support

Audio
Compression	G.711a/ G.711u/ AAC
Interface	Built-in Mic
Smart Function(Optional)
Smart detection	Tripwire, Intrusion, Abandoned/Missing, Scene Change, Audio detect, Face detect
Network
Ethernet	RJ-45 (10/100Base-T)
Wi-Fi	Wi-Fi(IEEE802.11b/g/n) , 50m(open field)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, 802.1x
Compatibility	ONVIF,PSIA,CGI
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	Micro SD Max 128GB
RS485	N/A
Alarm	N/A
PIR Sensor Range	N/A
General
Power Supply	DC12V
Power Consumption	<5W
Working Environment	-30°C~+50°C, Less than 95% RH
Ingress Protection	IP66
Vandal Resistance	N/A

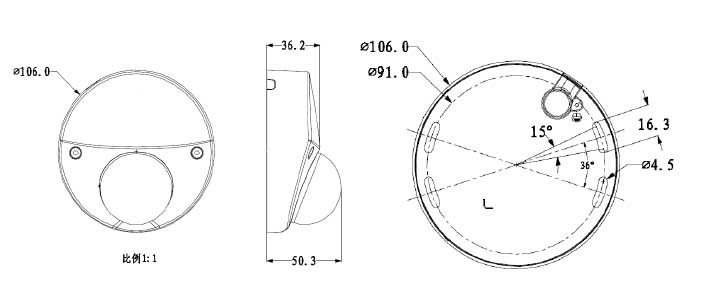

Dimensions	Φ 106mm× 50.3mm
Weight	0.35kg
