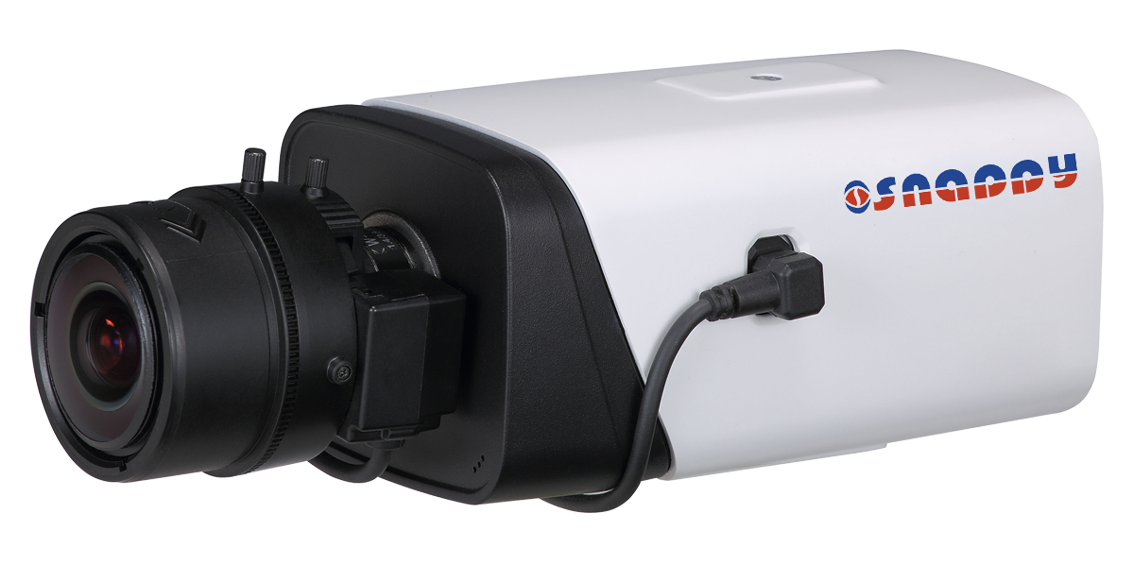

3MP WDR Ultra Smart IP Camera
Model : IP-BX3C

Features

  • 1/3" 3 Megapixel progressive scan CMOS
  • Support H.264/MJPEG dual codec
  • Smart triple streams supported
  • Max 25/30fps@3MP(2048x1536)
  • Ultra WDR (Wide Dynamic Range) up to 120dB
  • Ultra 3D DNR
  • Ultra Defog, ROI, EIS
  • Smart detection
    • Face detection
    • Tripwire detection
    • Intrusion detection
    • Scene change detection
  • Auto back focus
  • 100/1000M Base-T Ethernet
  • Micro SD memory, PoE

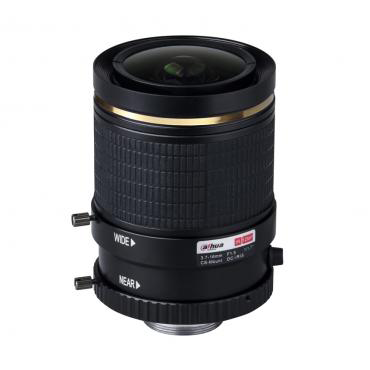

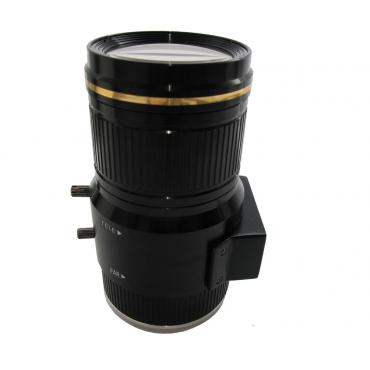

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/3”3Megapixelprogressive scan CMOS
Effective Pixels 2048(H)x1536(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
Min. Illumination 0. 1Lux/F1.2(Color), 0.01Lux/F1.2(B/W)
S/N Ratio More than 50dB
Video Output channel BNC(1.0Vp-p,75Ω)
Camera Features
Max. IR LEDs Length N/A
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / WDR 120dB
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
EIS Support
Ultra Defog Support
Smart focus ABF
Lens
Mount Type C/CS
Video
Compression H.264/MJPEG
Resolution 3M(2048×1536)/1080P(1920×1080)/720P(1280×720) /D1(704×576) /CIF(352×288)
Frame Rate
Main Stream 3M/1080P (1~25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Third Stream 1080P/720P/D1(1 ~ 25/30fps)
Bit Rate H.264: 48K ~ 8192Kbps
ROI Up to 4 areas
Audio
Compression G.711a / G.711u
Interface 1/1 channel In/Out
Smart Function(optional)
Smart detection Tripwire, Intrusion, Scene change, Missing/Abandoned, Audio detect, Defocus detect, Face detect
Network
Ethernet RJ-45 (100/1000Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF, CGI,PSIA
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
RS485 1
Alarm 2/1 channel In/Out
General
Power Supply DC12V/AC24V, PoE (802.3af)
Power Consumption Max 3.5W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection N/A

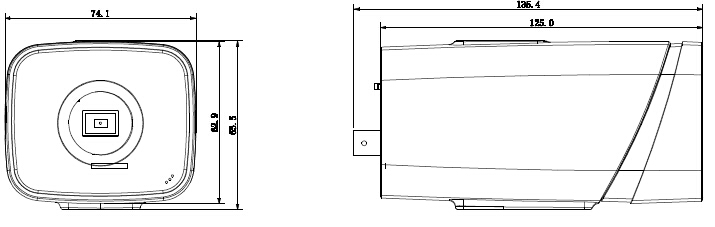

Dimensions 74.1mm×65.5mm×135.4mm
Weight 0.3Kg

Downloads

1

Catalog : 3MP WDR Ultra Smart IP Camera

Click below link to download the catalog for the 3MP WDR Ultra Smart IP Camera - Model : IP-BX3C

Download Catalog
