| Video |
|
Compression
|
H.264 / MJPEG |
|
Resolution
|
1080P(1920×1080) / 720P(1280×720) /D1(704×576/704×480) /CIF(352×288/352×240) |
|
Frame Rate
|
|
Main Stream
|
1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps)
|
|
Sub Stream 1
|
D1/CIF(1 ~ 25/30fps)
|
|
Sub Stream 2
|
720P/D1/ CIF (1 ~ 25/30fps)
|
|
Bit Rate
|
H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps |
| Audio |
|
Compression
|
G.711a / G.711u(32kbps)/ PCM(128kbps) |
|
Interface
|
1/1 channel In/Out |
| Intelligent Function |
|
Auto Tracking
|
Single-scene, multiple-scene, panorama-scene
|
|
IVS (optional)
|
Tripwire, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving and etc.
|
|
Tracking Trigger Mode
|
Manual / Auto (alarm triggered)
|
|
Tracking Trigger Event
|
Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc.
|
| Network |
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
Protocol
|
IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
|
Compatibility
|
ONVIF PSIA CGI |
|
Max. User Access
|
20 users
|
|
Smart Phone
|
iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
|
Memory Slot
|
Micro SD, Max 64GB |
|
Alarm
|
7/2 channel In/Out |
| General |
|
Power Supply
|
AC 24V/3A (±16%) |
|
Power Consumption
|
20W, 45W(Heater on)
|
|
Working Environment
|
-40ºC ~ 60ºC / Less than 90% RH |
|
Ingress Protection
|
IP67 |
|
Vandal Resistance
|
IK10（Optional） |
|

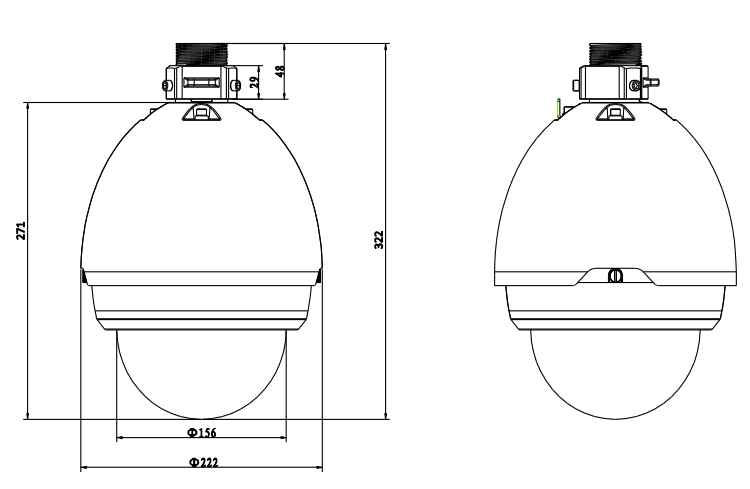

Dimensions
|
Φ222(mm) x 322(mm) |
|
Weight
|
5.0kg |
