Motorized Dome 5MP Full HD Camera
Features Technical Specifications Downloads High Resolution Images

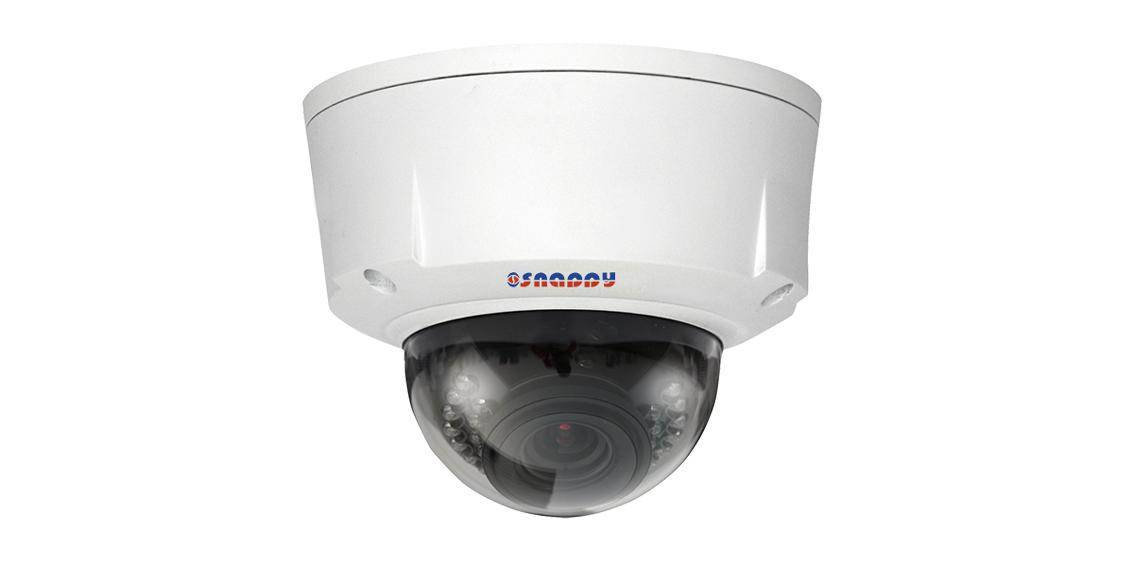

Motorized Dome 5MP Full HD Camera
Model : IP-D5MVFIRC,
Model : IP-D5MVFC ( Without IR )

Features

  • 1/2.5” 5Megapixel progressive scan CMOS
  • H.264 & MJPEG dual-stream encoding
  • Max 12fps@5M(2560×1920)&25/30fps@1080P(1920×1080)
  • DWDR, Day/Night(ICR), 3DNR, Auto Iris, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 4~9mm varifocal motorized lens
  • Built-in 1/1 alarm in/out
  • Max. IR LEDs length 20m
  • Micro SD memory, IP66, IK10, PoE

Technical Specifications

Camera
Image Sensor 1/2.5” 5Megapixel CMOS
Effective Pixels 2560(H)x1920(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
Min. Illumination Color: 0. 01Lux/F1.6
S/N Ratio More than 50dB
Video Output 1 channel, BNC(1.0Vp-p/75Ω)
Camera Features
Max. IR LEDs Length IP-D5MVFC : N/A
IP-D5MVFIRC : 20m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 4~9mm motorized
Max Aperture F1.6
Focus Control Auto
Angle of View H: 86.5°(Wide)~28.6°(Tele)
Lens Type Motorized /Auto Iris(DC)
Mount Type Board-in Type
Video
Compression H.264H/H.264B/H.264/MJPEG
Resolution 5M(2536×1920)/3M(2048×1536)/1080P(1920×1080) / 720P(1280×720) / D1(704×576) / CIF(352×288)
Frame Rate
Main Stream 5M(1~12fps)/1080P/720P(1~25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264H: 32K ~ 8192Kbps
Audio
Compression G.711a / G.711u/ PCM
Interface 1/1 channel In/Out
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
RS485 N/A
Alarm 1/1 channel In/Out
PIR Sensor Range N/A
General
Power Supply DC12V/PoE(802.3af)
Power Consumption <8.5W(AC24V: +2W)
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP66
Vandal Resistance IK10

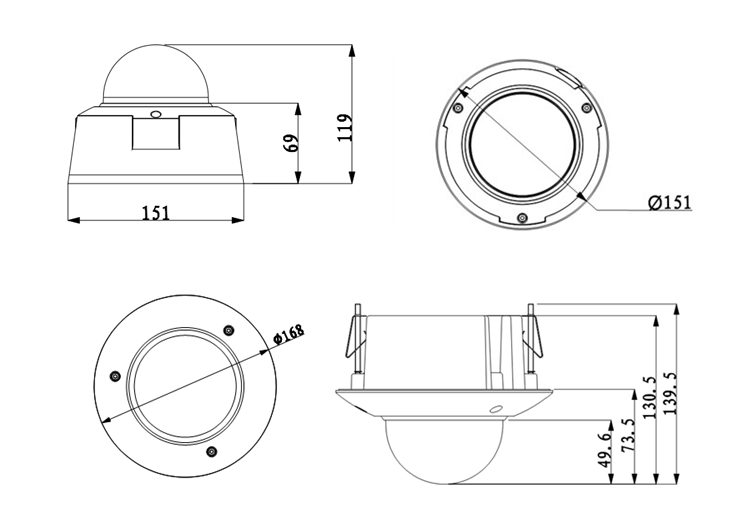

Dimensions Φ151mm×119mm
Φ146mm×139.5mm(-DI)
Weight 1.25kg
1.18Kg(-DI)

Downloads

1

Catalog : Motorized Dome 5MP Full HD Camera

Click below link to download the catalog for the Motorised Dome 5MP Full HD Camera

Download Catalog
2

Application

Motorized Dome 5MP Full HD Camera
