600VA
Features Technical Specifications Downloads High Resolution Images
600VA

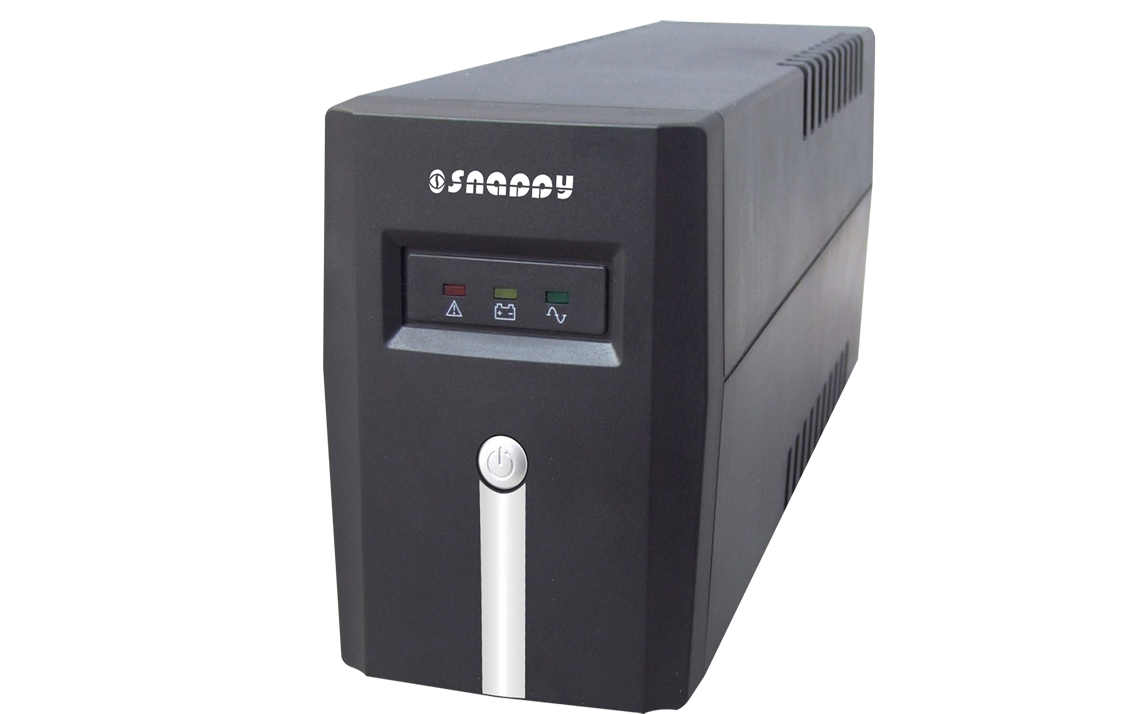

Model : Micro 600

Features

  • AVR boost and buck
  • Cold start function
  • Smart RS232/USB interface for power management
  • Built-in-self-designostic function
  • Modem/LAN internet protection
  • Compatible with generator set (optional)
  • LCD or LED panel for option
  • Fastest charging capacity
  • Auto charging at off mode
  • Auto-restart function

Technical Specifications

MODEL Micro 600
Capacity (VA/Watts) 600/360
Input
Nominal input voltage 110/120 Vac or 220/230/240 Vac
Operating voltage range 81 ~ 145 Vac / 162~290 Vac
Operating frequency range 50/60 Hz (± 10%)
Output
Output voltage range (Batt. Mode) Simulated sine wave at niminal voltage ± 10%
Frequency range (Batt. Mode) 50 or 60Hz ± 1Hz
Transfer time Typical 2~6 ms, 10ms max.
Battery
Battery type & number 12 V/7Ah x 1
Typical recharge time 6~8 hours ( to 90% of full capacity)
System Features
Indicators
AC Mode(Green LED lighting) The 4th Green LED lighting (The 1st to 4th Green LED lighting to indicate load level)
LED1(green) : > 100% load level
LED2(green) : > 75% load level
LED3(green) : > 50% load level
LED4(green) : > 25% load level
Battery Mode ( Amber LED flashing) The 5th Green blinking (The 1st to 4th green capacity to indicate battery capacity)
LED1(green): battery voltage > 25V
LED2(green): battery voltage > 23V
LED3(green): battery voltage > 22V
LED4(green): battery voltage > 21V
Protection Fault ( Red LED lighting ) Overload and overcharge protection
Alarm Battery Mode: Sounding every 10 seconds
Low battery : Sounding every second
Overload : Sounding every 0.5 second
Battery replacement alarm : Sounding every 2 seconds
Fault : Continuosly sounding
Communication interface USB/RS-232(optional),Supports Windows 2000/2003/XP/Vista/2008,Windows 7, Linux, Unix, and MAC
Environmental
Operating temperature 0 ~ 40°C
Humidity range 0 ~ 95%(non-condensing)
Noise level <40dB (1 meter from surface)
Physical
Dimention DXWXH (mm) 298x101x142
Net weight (kg) 4.25
Standards
Safety IEC/EN62040-1;IEC/EN60950-1
EMC IEC / EN62040-2;IEC61000-4-2;IEC61000-4-4;IEC61000-4-5;IEC61000-4-6;IEC61000-4-8

Downloads

1

Catalog : 600VA

Click below link to download the catalog for the 600VA

Download Catalog
