3MP VF Lens
Model : FYZ0081-I

Technical Specifications

Model FYZ0081-I
Image format 1/2.7”
Focal length 5-50mm
Aperture F1.6
Field Angle 64.6°(D)x52.3°(H)x38.5°(V) ～9°(D)x7°(H)x5.4°(V)
M.O.D. 0.2m
TV Distortion W:3.1% T:0.34%
IR Correction Yes
Lens Control
Focus Manual
Zoom Manual
Iris DC-Iris
Mount CS

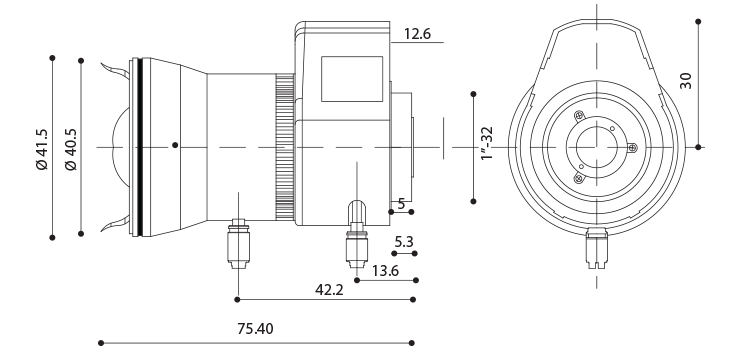

Dimension Ø41.5x76.7Zmm
Weight 151g
Operating temperature -20°C～+60°C

Downloads

1

Catalog : 3MP VF Lens

Click below link to download the catalog for the 3MP VF Lens - Model : FYZ0081-I

Download Catalog
2

Application

3MP VF Lens
