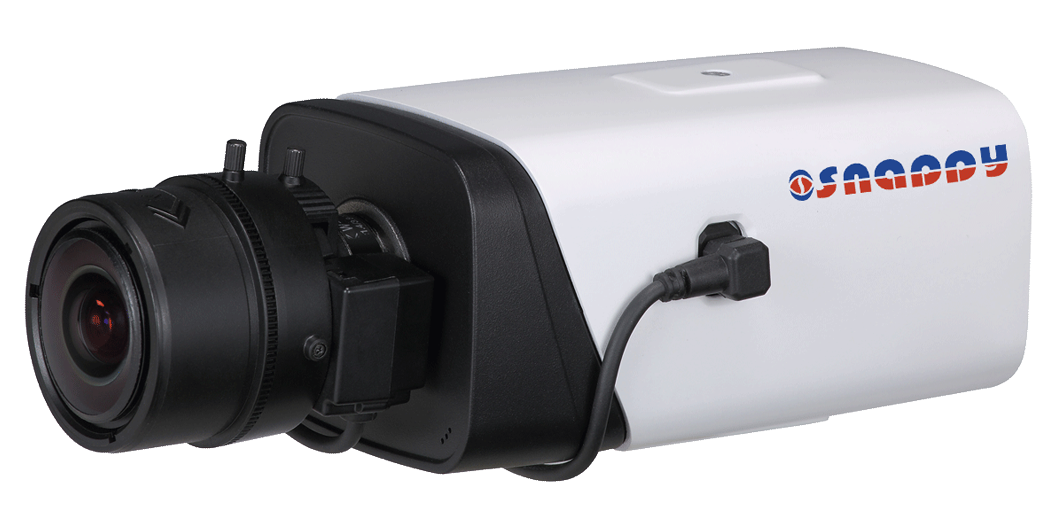

2MP Full HD WDR Camera
Model : IP-BX2C

Features

  • 1/2.7” 2Megapixel progressive scan CMOS
  • Support H.264&MJPEG dual codec
  • 25/30fps@1080P(1920×1080)
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2/1 Alarm in/out, 1/1 audio in/out(Built-in Mic)
  • Auto back focus(ABF)
  • Micro SD memory, PoE

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/2.7” 2Megapixel progressive scan CMOS
Effective Pixels 1920(H)x1080(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Min. Illumination 0. 01Lux/F1.2(Color), 0.001Lux/F1.2 (B/W)
S/N Ratio More than 50dB
Video Output 1 channel BNC(1.0Vp-p,75Ω)
Camera Features
Max. IR LEDs Length N/A
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / WDR(120dB)
White Balance Auto/Sunny/Night/Outdoor/Customized
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
EIS Support
Smart focus ABF
Lens
Mount Type C/CS
Video
Compression H.264/ H.264H/ MJPEG
Resolution 1080P(1920×1080)/720P(1280×720)/D1(704×576)/CIF(352×288)
Frame Rate
Main Stream 1080P/720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Third Stream 720P(1-13/4fps)
Bit Rate H.264: 32K ~ 10Mbps
ROI Up to 4 areas
Audio
Compression G.711a / G.711u/ AAC
Interface 1/1 channel In/Out(Built-in Mic)
Smart Function(Optional)
Smart detection Tripwire, Intrusion, Abandoned/Missing, Scene Change, Audio detect, Face detect.
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD card, Max 128GB
RS485 1
Alarm 2/1 channel In/Out
General
Power Supply DC12V/AC24V, PoE (802.3af)
Power Consumption Max 10W (ABF&ICR on)
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection N/A
Vandal Resistance N/A

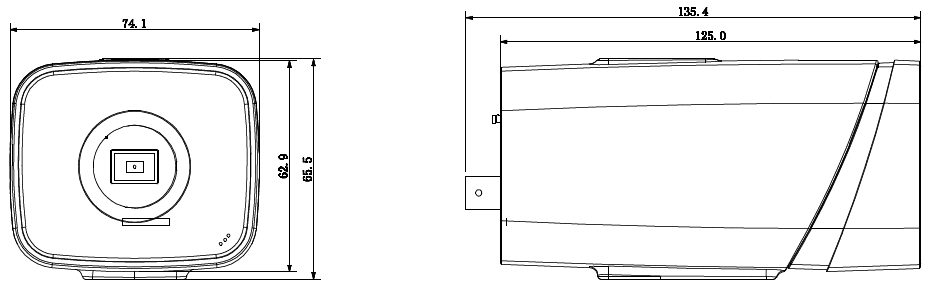

Dimensions 74.1mm×65.5mm×135.4mm
Weight 0.3Kg

Downloads

1

Catalog : 2MP Full HD WDR Network Camera

Click below link to download the catalog for the 2MP Full HD WDR Network Camera - Model : IP-BX2C

Download Catalog
2

Application

2MP Full HD WDR Camera
