C Series HD Wifi Camera
Features Technical Specifications Application High Resolution Images

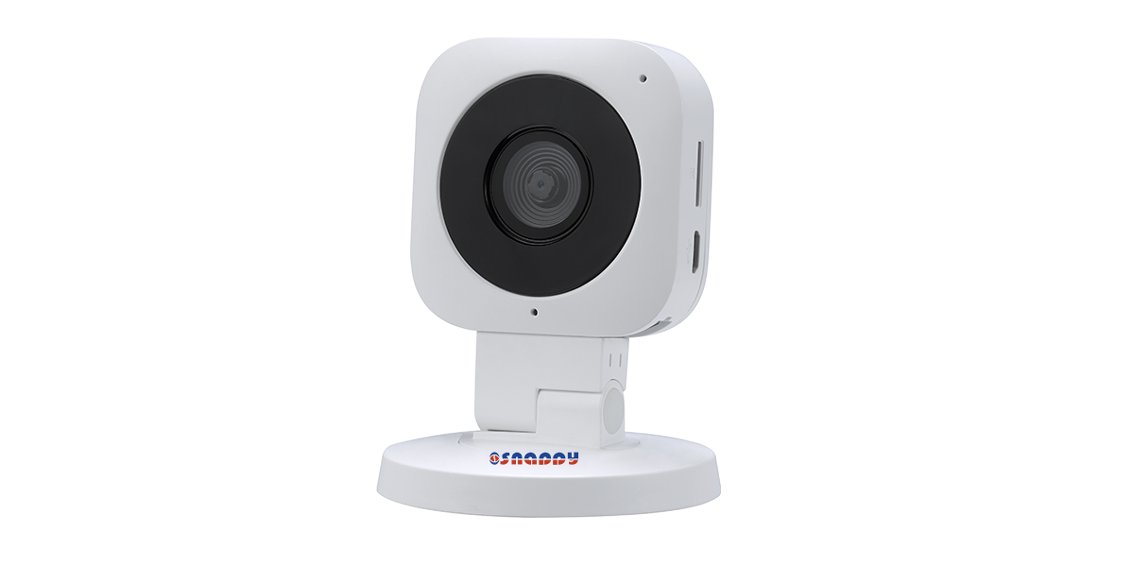

C Series HD Wifi Camera
Model : IP-C1FC-W

Features

  • 1/4” 1Megapixel CMOS
  • H.264 encoding
  • Max 25fps@720P(1280×720)
  • DWDR, Day/Night, 3DNR, Auto iris, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Wi-Fi support
  • Micro SD card，DC5V

Technical Specifications

Camera
Image Sensor 1/4” Progressive scan CMOS
Effective Pixels 1280(H)x720(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3s~1/30000s
Min. Illumination 0.01lux/F1.8（color）
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 5m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Lens
Focal Length 3.3mm
Max Aperture F2.0
Focus Control Manual
Angle of View 56.7°
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264
Resolution 720P(1280x720)/D1/CIF
Frame Rate
Main Stream 720P(1~25/30fps)
Bit Rate H.264: 8Kbps～2Mbps
Audio
Compression AAC
Interface Built-in Mic & Speaker
Network
Ethernet NA
Wi-Fi Wi-Fi(IEEE802.11b/g/n)30m(open field)
Protocol IPv4/IPv6, HTTP, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,FTP, QoS,
Compatibility ONVIF CGI
Max. User Access 10 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, up to 64GB
RS485 N/A
Alarm N/A
PIR Sensor Range Micro USB
General
Power Supply DC 5V2A
Power Consumption <3W
Working Environment -20°C~+45°C, Less than 95%RH
Ingress Protection N/A
Vandal Resistance N/A

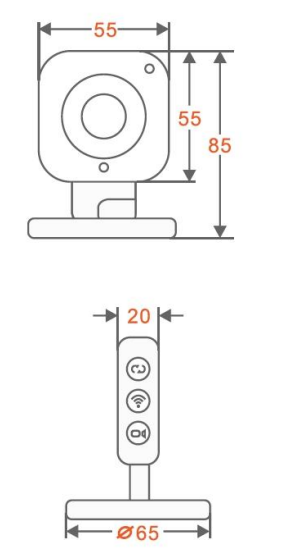

Dimensions(W×D×H) Φ65mmx85mmx 20mm
Weight 75g

Application

1

Application

C Series HD Wifi Camera
