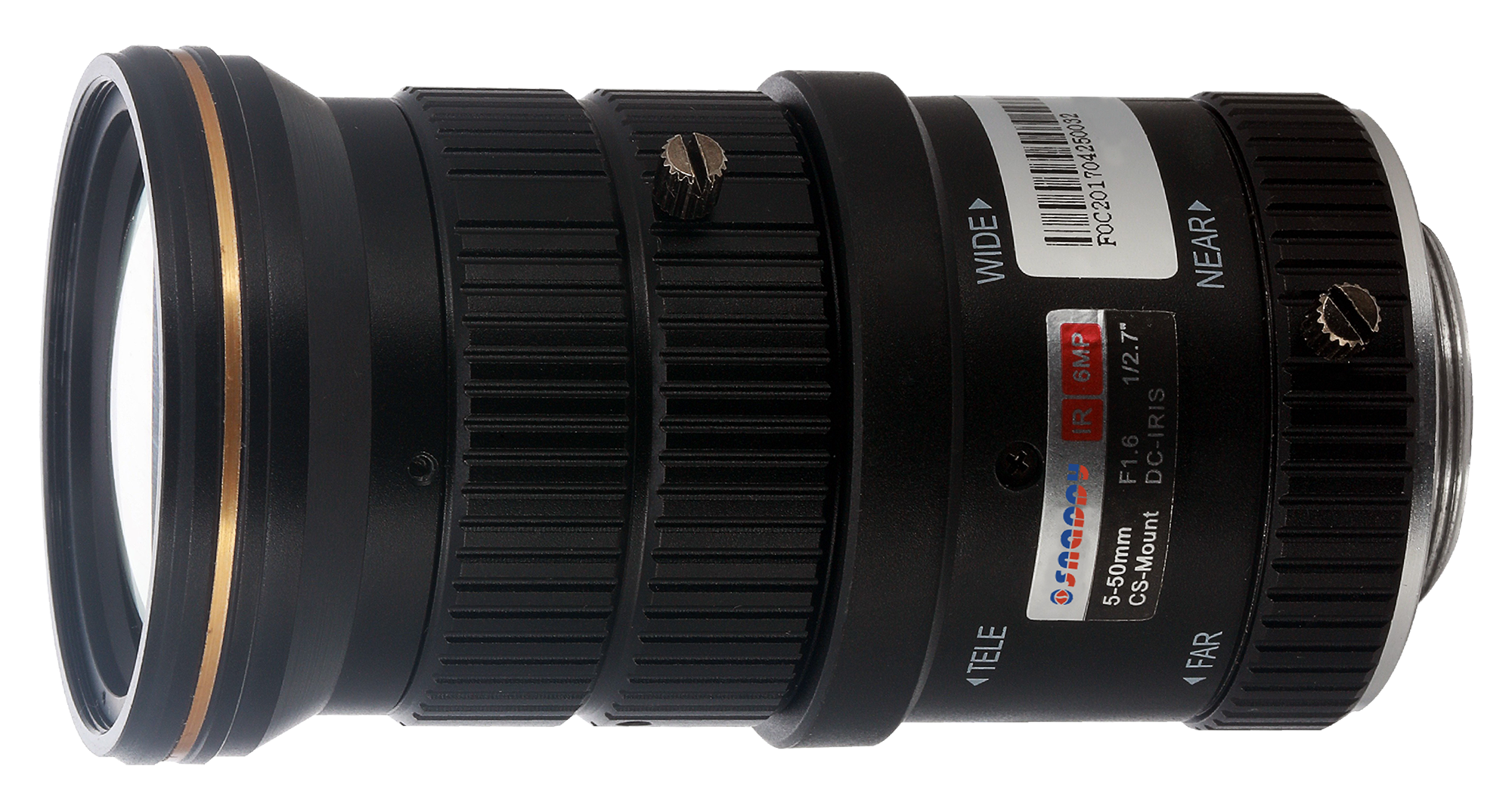

FEY1661-V5I
Model : FEY1661-V5I

Technical Specifications

Model FEY1661-V5I
Parameter
Image format 1/2.7”
Focal length 5-50mm
Lens Pixel 6MP
Aperture F1.6
Mount CS
Field Angle
1/2.7 W: 65.7°(D)x49.6°(H)x36.9°(V)~T: 5.2°(D)x7°(H)x5.2°(V)
1/2.9”(3:2) W: 58.1°(D)x47°(H)x33.2°(V)~T: 8.1°(D)x6.6°(H)x4.7°(V)
1/4’ W: 42°(D)x33°(H)x25°(V)~T: 5.9°(D)x4.7°(H)x3.6°(V)
Lens Control
Focus Manual
Zoom Manual
Iris DC-Iris

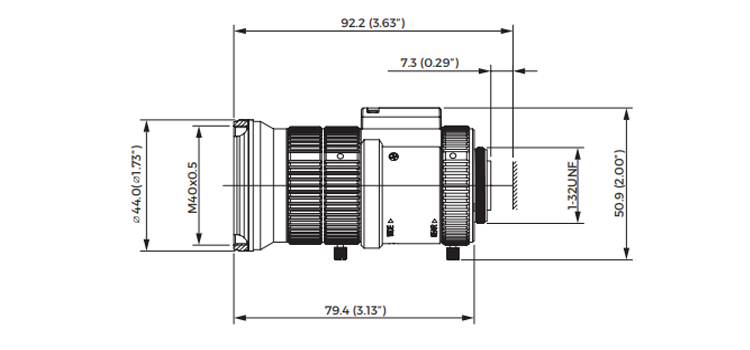

Dimension ɸ44mmx85.7mm (ɸ1.73”x3.37”)
Weight 0.2kg (0.44lb)
Operating temperature -30°C~+70°C (-22°F~+158°F)
Humidity <90% RH
Certifications
certifications CE (EN55032, EN55024, EN50130-4) FCC (47 CFR Part 15 Subpart B)

Downloads

1

Catalog : 6MP VF Lens

Click below link to download the catalog for the 6MP VF Lens - Model : FEY1661-V5I

Download Catalog
2

Application

6MP VF Lens
