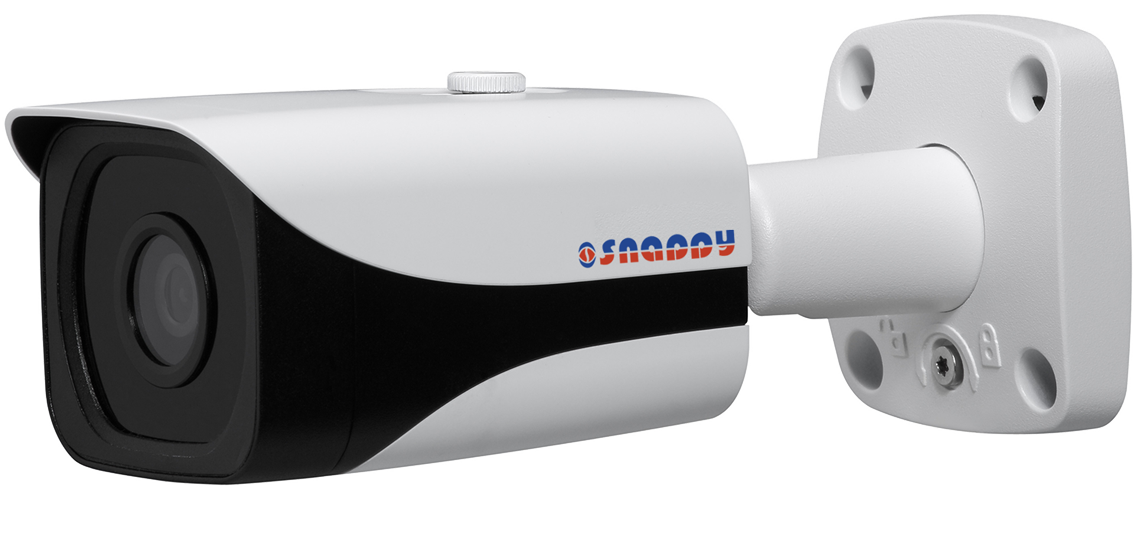

Small Bullet 4K Ultra HD IP Camera
Model : IP-B4KFC

Features

  • 1/2.3” 4K progressive scan CMOS
  • H.264 &MJPEG dual-stream encoding
  • Max 15fps@4K(3840×2160)
  • DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 4mm fixed lens
  • Max. IR LEDs Length 30m
  • IP66, PoE

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/2.3” 4K progressive scan CMOS
Effective Pixels 3840(H)x2160(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
Min. Illumination 0. 01Lux/F1.4(Color), 0Lux/F1.4(IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 4mm
Max Aperture F1.6
Focus Control Manual
Angle of View H:80°
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264/ MJPEG
Resolution 4K(3840×2160)3M(2048×1536)/1080P(1920×1080) / 720P(1280×720) /D1(704×576/704×480) / CIF(352×288/352×240)
Frame Rate
Main Stream 4K(1~15fps)/3M/1080P/ (1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 20K ~ 16Mbps
Audio
Compression N/A
Interface N/A
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V/PoE(802.3af)
Power Consumption <7.5W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP66
Vandal Resistance N/A

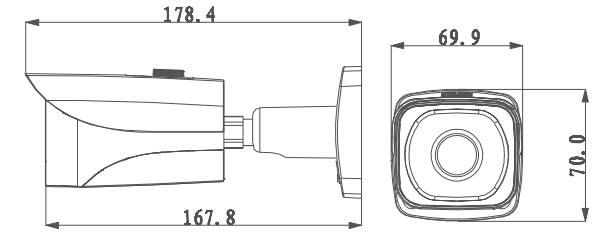

Dimensions 168.1mm×66mm×58.4mm, Now: 178.4mm×70mm×69.9mm
Weight 528g(683.4g with packaging)

Downloads

1

Catalog : Small Bullet 4K Ultra HD IP Camera

Click below link to download the catalog for the Small Bullet 4K Ultra HD IP Camera - Model : IP-B4KFC

Download Catalog
