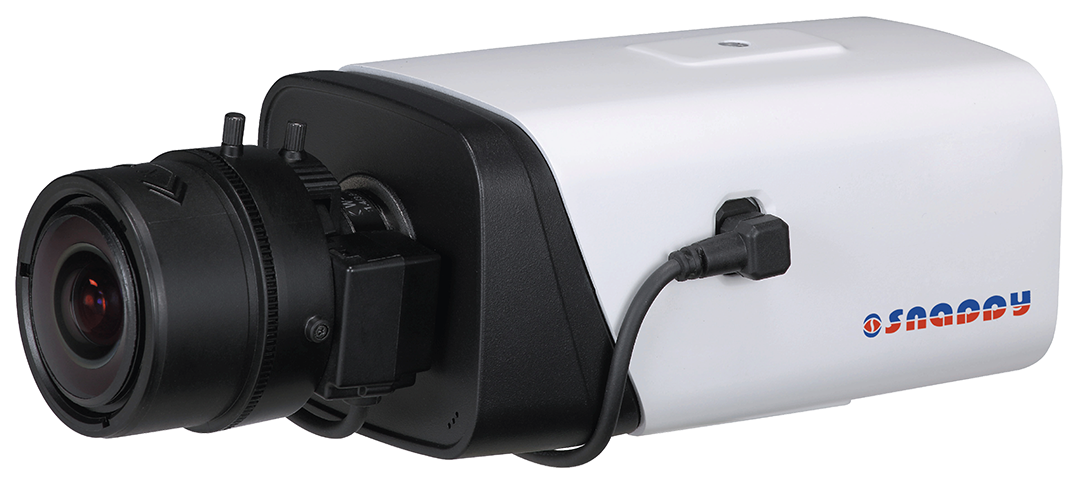

12MP Ultra HD IP Camera
Model : IP-BX12C

Features

  • 1/1.7" 12 Megapixel progressive scan CMOS
  • Support H.264/MJPEG dual codec
  • Smart triple streams supported
  • Max 15fps@12MP(4000x3000)
  • Defog, ROI, EIS
  • Auto back focus
  • Bulit-in Mic
  • 100/1000M Base-T Ethernet

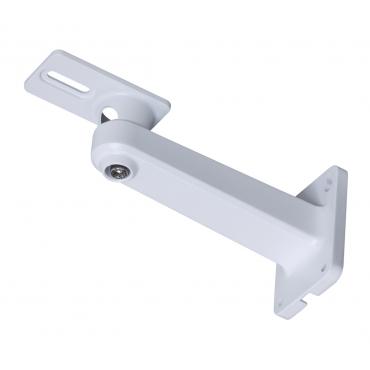

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/1.7” 12Megapixel CMOS
Effective Pixels 4000(H)x3000(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/10000s
Min. Illumination Color: 0.01Lux/F1.2, B/W: 0.001Lux/F1.2
S/N Ratio More than 50dB
Video Output 1 channel BNC(1.0Vp-p,75Ω)
Camera Features
Max. IR LEDs Length N/A
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
EIS Support
Ultra Defog Support
Smart Focus ABF
Lens
Mount Type C/CS
Video
Compression H.264/MJPEG
Resolution 12M(4000×3000)/8M(3840×2160)/1080P(1920×1080)/720P(1280×720) /D1(704×576) /CIF(352×288)
Frame Rate
Main Stream 12M(1~15fps)/8M/1080P (1~25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Third Stream 1080P/720P/D1(1 ~ 25/30fps)
Bit Rate H.264: 32Kbps~ 16Mbps
ROI Up to 4 areas
Audio
Compression G.711a / G.711u/AAC
Interface 1/1 channel In/Out(Built in Mic)
Network
Ethernet RJ-45 (10/100/1000Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 128GB
RS485 1 port
Alarm 2/1 channel In/Out
General
Power Supply DC12V/AC24V, PoE (802.3af)
Power Consumption Max12W (ABF&ICR on)
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection N/A

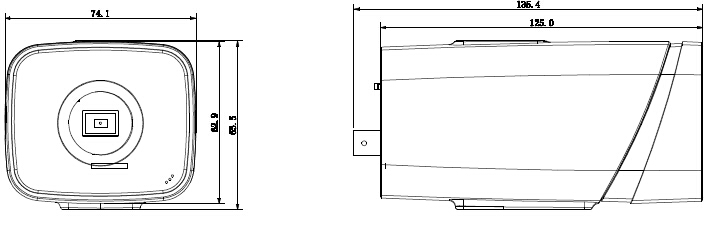

Dimensions 74.1mm×65.5mm×135.4mm
Weight 0.3Kg
