Thermal Camera

Features Technical Specifications Downloads High Resolution Images

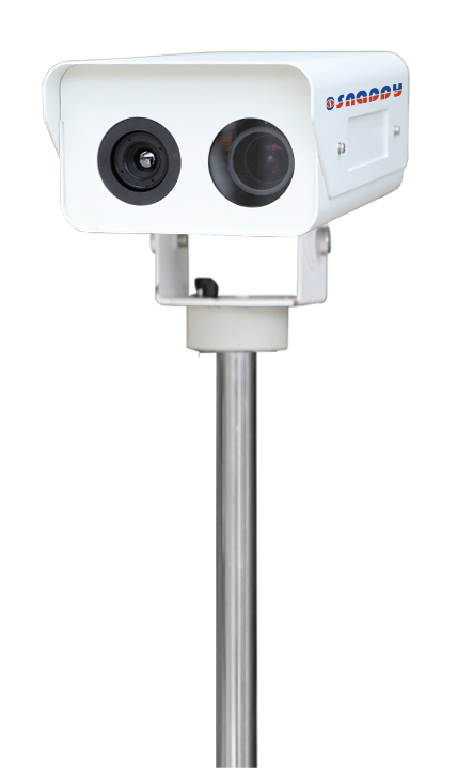

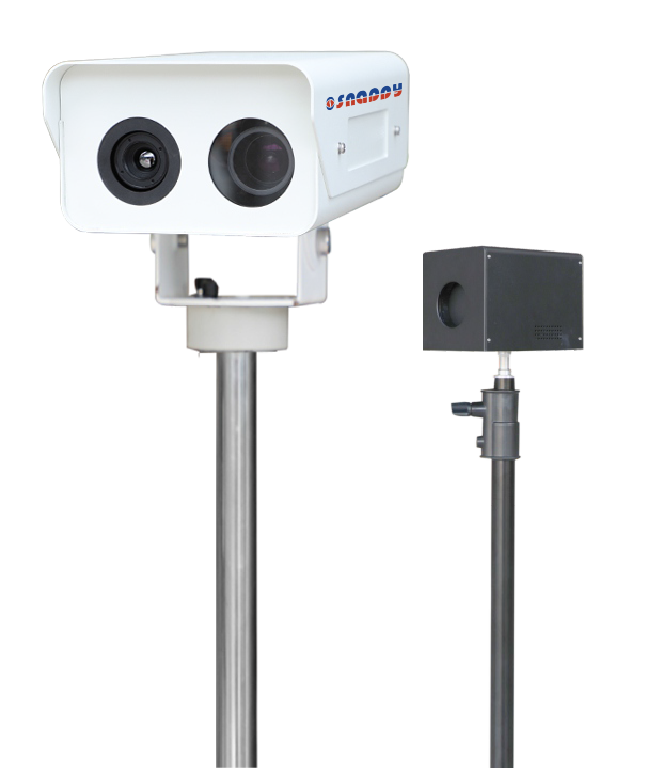

Model : IP51-AB0

Features

AI artiﬁcial intelligence

Real-time face temperature detection, which can simultaneously capture more than 30 face temperatures within an effective temperature measurement distance

Independent research and development of core devices

The core device is independently developed, with a large imaging area, accurate temperature measurement and clear images

Trafﬁc statistics

Software management platform can generate reports automatically with real-time trafﬁc statistics, according to date, time, personnel temperature,etc

Scene-based intelligent temperature algorithm

The internal (underarm)and surface temperature mode is automatically converted to display the body temperature in real time

Support data interface and remote video transmission

Provide SDK development kit for data interface. Full network, bi-spectral image with single IP output, remote video transmission (ONVIF, RTSP) with real-time temperature display

Technical Specifications

Detector :
Detector type	Uncooled FPA
Wavelength	8 - 14 µm
Resolution	160×120
Lens :
FOV	40°×30°
Focal length	3.85mm
Functions :
Temperature range	20°C ~ 50°C
Measurement accuracy	≤0.3°C
Alarm response time	<1s
Color code	11
Temperature calibration	Automatic temperature correction via built-in and external blackbody
Long range distance	2.7m
Measurement response	<0.1s
Alarm Function :
Alarm mode	Body surface、core temperature
Max. Alarm number	More than 30
Intelligent function	Human face temperature detect, face capture and comparison
Alarm trigger	Available
CCD :
Resolution	1920×1080
Imaging device	2 million CMOS
Function	Support wide dynamic
Network :
Programming interface	Support SDK, Windows, 32 bit and 64bit
Web	IE : Microsoft Internet Explorer (version 9~11)
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, FTP, ICMP, IGMP, ARP, DNS
Environment :
Operation temp	10°C- +35°C
Storage temp	-40°C- +60°C
Physical Interface :
Input voltage	DC 12V
Power consumption	≤15W
Web interface	1 channel RJ45
Weight	<1.5KG
Dimension to camera	<232×145×85mm
Use condition	Indoor

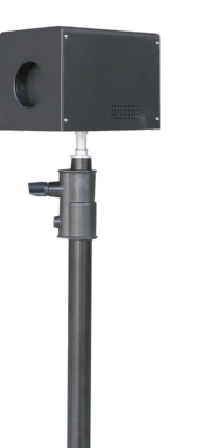

Black Body Parameter :
Factory settings	37°C
Temperature resolution	0.1°C
Effective radiation plane	Φ70mm
Working temperature	0~35°C
Power	110-220V AC
Effective emission	0.96
Weight	<3.5KG
Power consumption	60W
Temperature stability	±( 0.1~0.2 )°C/30min
Dimension	155x133x137mm
