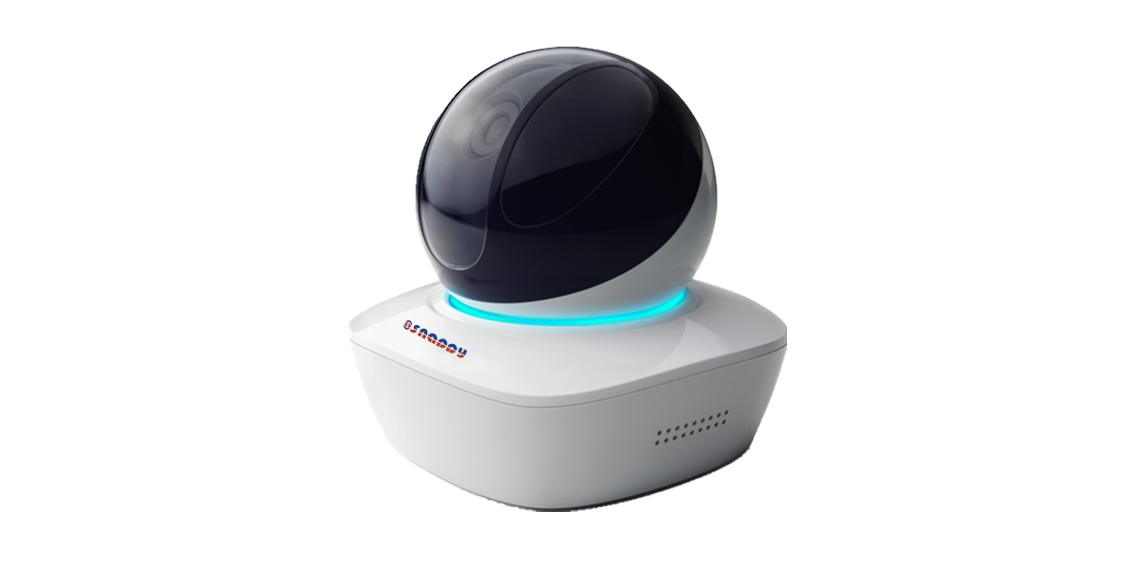

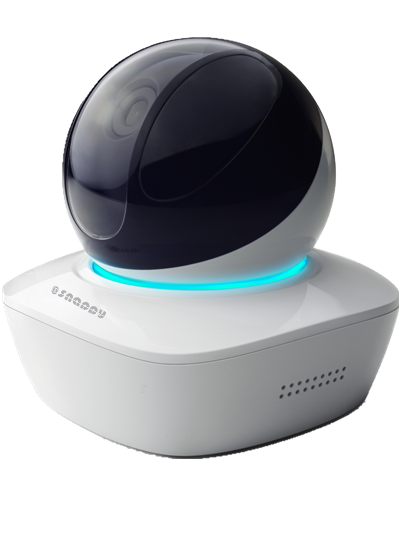

A Series HD PT Wifi Camera
Features Technical Specifications High Resolution Images
A Series HD PT Wifi Camera
Model : IP-PT1FC-W

Features

  • 1/4” 1Megapixel CMOSS
  • H.264 & MJPEG dual-stream encoding
  • Max. 25/30fps@720P(1280x720)
  • DWDR, Day/Night, 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, Smart PSS & DMSS
  • 0~355° Pan range, 90°Tilt range, 25 presets
  • 3.6mm fixed lens
  • IR distance 10m
  • Wi-Fi support
  • Built-in Mic & Speaker
  • Micro SD memory slot，DC5V2A

Technical Specifications

Camera
Image Sensor 1/4” Progressive scan CMOS
Effective Pixels 1280(H)x720(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3s~1/30000s
Min. Illumination 0.01lux/F1.8（color）
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 10m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Lens
Focal Length 3.6mm
Max Aperture F1.8
Focus Control Manual
Angle of View H:62°
Lens Type Fixed lens
Mount Type Board-in Type
PT
Pan/ Tilt Range Pan: 0°~355°; Tilt: 0°~90°
Preset Speed 100°/s
Preset 25
Tour 8
Video
Compression H.264/H.264B/MJPEG
Resolution 720P(1280x720)/D1/CIF
Frame Rate
Main Stream 720P(1~25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 8Kbps～8192Kbps
Audio
Compression G.711a;G.711Mu;AAC
Interface Built-in Mic & Speaker
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi Wi-Fi(IEEE802.11b/g/n) 50m(open field)
Protocol IPv4/IPv6, HTTP, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,FTP, QoS,
Compatibility ONVIF CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, up to 64GB
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC 5V2A
Power Consumption <7.5W
Working Environment -10°C~+45°C, Less than 95%RH
Ingress Protection N/A
Vandal Resistance N/A
Dimensions(W×D×H) 94mm x 94mm x 94mm
Weight 0.36Kg
A Series HD PT Wifi Camera
