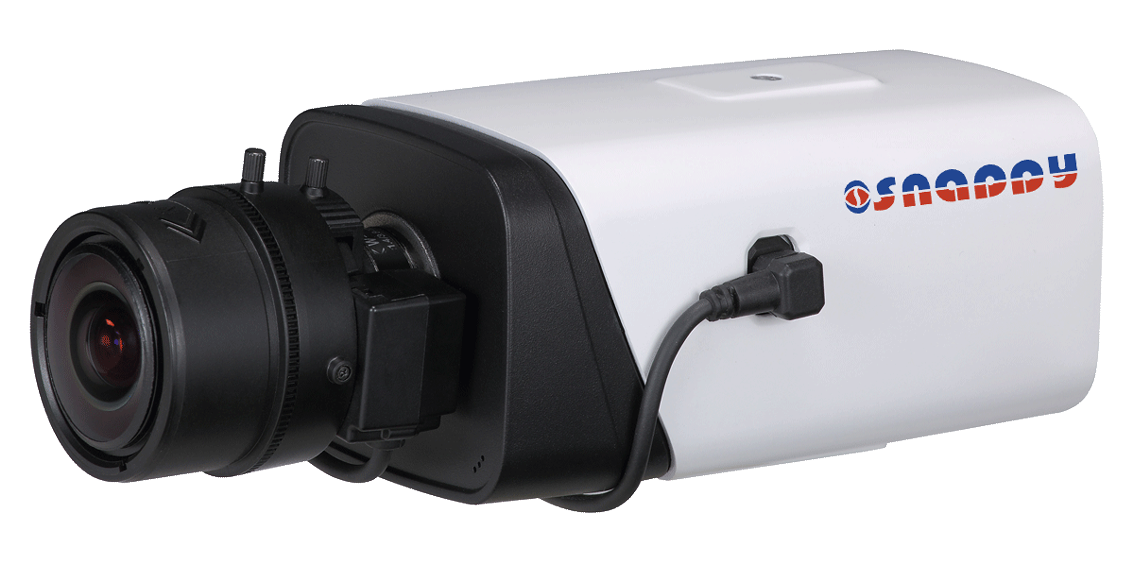

2MP Ultra Smart IP Camera
Model : IP-BX2C

Features

  • 1/1.9" 2 Megapixel progressive scan Exmor CMOS
  • Support H.264/MJPEG dual codec
  • Smart triple streams supported
  • Max 50/60ps@1080P(1920x1080)
  • Ultra WDR (Wide Dynamic Range) up to 120dB
  • Ultra 3D DNR, Excellent performance under low illumination
  • Ultra Defog, ROI, EIS
  • Smart detection
  • Intelligent Function
  • Auto back focus(ABF)
  • Micro SD memory, PoE

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/1.9” 2Megapixel progressive scan Exmor CMOS
Effective Pixels 1920(H)x1080(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
Min. Illumination 0. 002Lux/F1.2 (Color), 0.0002Lux/F1.2(B/W)
S/N Ratio More than 50dB
Video Output channel BNC(1.0Vp-p,75Ω)
Camera Features
Max. IR LEDs Length N/A
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / WDR 120dB
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
EIS Support
Ultra Defog Support
Smart focus ABF
Lens
Mount Type C/CS
Video
Compression H.264/MJPEG
Resolution 1080P(1920×1080)/720P(1280×720)/D1(704×576)/CIF(352×288)
Frame Rate
Main Stream 1080P/720P(1 ~ 50/60fps)
Sub Stream D1/CIF(1 ~ 50/60fps)
Third Stream 1080P/720P(1 ~ 50/60fps)
Bit Rate H.264: 32K ~ 8192Kbps
ROI Up to 4 areas
Audio
Compression G.711a / G.711u
Interface 1/1 channel In/Out
Smart Function
Smart detection Tripwire, Intrusion, Scene change, Missing/Abandoned, Audio detect, Defocus detect, Face detect
Intelligent function People Counting, Heat Map
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF, CGI,PSIA
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
RS485 1
Alarm 2/1 channel In/Out
General
Power Supply DC12V/AC24V, PoE (802.3af)
Power Consumption Max 10W (ABF&ICR on)
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection N/A
Dimensions 74.1mm×65.5mm×135.4mm
Weight 0.3Kg

Downloads

1

Catalog : 2MP Ultra Smart IP Camera

Click below link to download the catalog for the 2MP Ultra Smart IP Camera - Model : IP-BX2C

Download Catalog
2

Application

2MP Ultra Smart IP Camera
