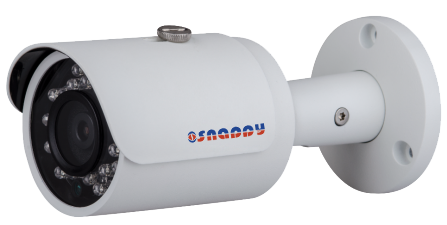

Mini Bullet Camera
Model : IP-B3FC

Features

  • 1/3" 3 Megapixel progressive scan CMOS
  • H.264&MJPEG dual-stream encoding
  • Max 20fps@3M(2048×1536) & 25/30fps@1080P(1920×1080)
  • DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 3.6mm fixed lens (6mm optional)
  • Max. IR LEDs Length 30m
  • IP67, PoE

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/3”3Megapixelprogressive scan CMOS
Effective Pixels 2048(H)x1536(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1s~1/100000s
Min. Illumination 0. 045Lux/F2.1(Color), 0Lux/F2.1(IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm(6mm optional)
Max Aperture F2.1(F1.9)
Focus Control Manual
Angle of View H: 81°(55°)
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264/ H.264H/ H.264B/ MJPEG
Resolution 3M(2048×1536)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240)
Frame Rate
Main Stream 3M(1 ~ 20fps)/1080P(1 ~ 25/30fps)
Sub Stream D1(1 ~ 25/30fps)
Bit Rate H.264: 4kbps~8192kbps
Corridor Mode Support
Audio
Compression N/A
Interface N/A
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS
Compatibility ONVIF, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption <4.7W(IR on)
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Dimensions Φ70mm×165mm
Weight 0.38Kg(with package 0.44 Kg)

Application

1

Catalog : Mini Bullet 3MP HD Camera

Click below link to download the catalog for the Mini Bullet 3MP HD Camera - Model : IP-B3FC

Download Catalog
