| System |
|
Main Processor
|
Dual-core embedded processor |
|
Operating System
|
Embedded LINUX |
| Video & Audio |
|

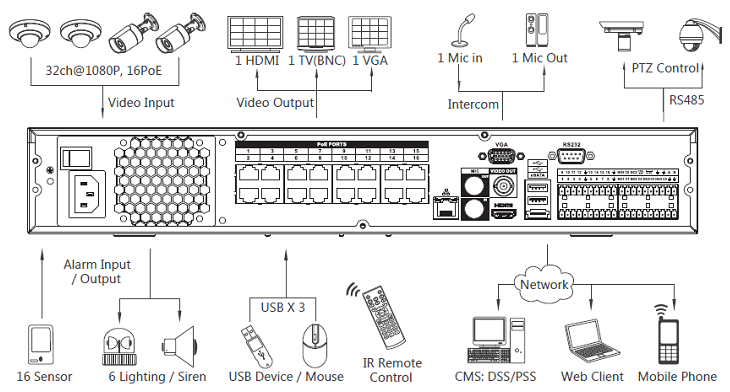

IP Camera Input
|
16 channel(NVR-416R-16P), 32 channel(NVR-432R-16P), 64 channel(NVR-464R-16P) |
|
Two-way Talk
|
1 channel Input, 1 channel Output, BNC |
| Display |
|
Interface
|
1 HDMI, 1 VGA, 1TV |
|
Resolution
|
1920×1080, 1280×1024, 1280×720, 1024×768, etc., |
|
Display Split
|
1/4/8/9/16(NVR-416R-16P), 1/4/8/9/16/25/36(NVR-432R-16P), 1/4/8/9/16/25/36(NVR-464R-16P) |
|
OSD
|
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording |
|
Compression
|
H.264/MJPEG |
|
Resolution
|
5Mp(2560× 1920)/3Mp(2048× 1536)/1080P(1920× 1080)/720P(1280× 720)/D1(704× 576/704× 480) & etc. |
|
Record Rate
|
192Mbps |
|
Bit Rate
|
48~ 8192kbps |
|
Record Mode
|
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
|
Record Interval
|
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Video Detection & Alarm |
|
Trigger Events
|
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
|
Video Detection
|
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
|
Alarm Input
|
16 channel(NVR-416R-16P), 16 channel(NVR-432R-16P), 16 channel(NVR-464R-16P) |
|
Relay Output
|
6 channel(NVR-416R-16P), 6 channel(NVR-432R-16P), 6 channel(NVR-464R-16P) |
