PTZ Keyboard
Features Technical Specifications Downloads High Resolution Images

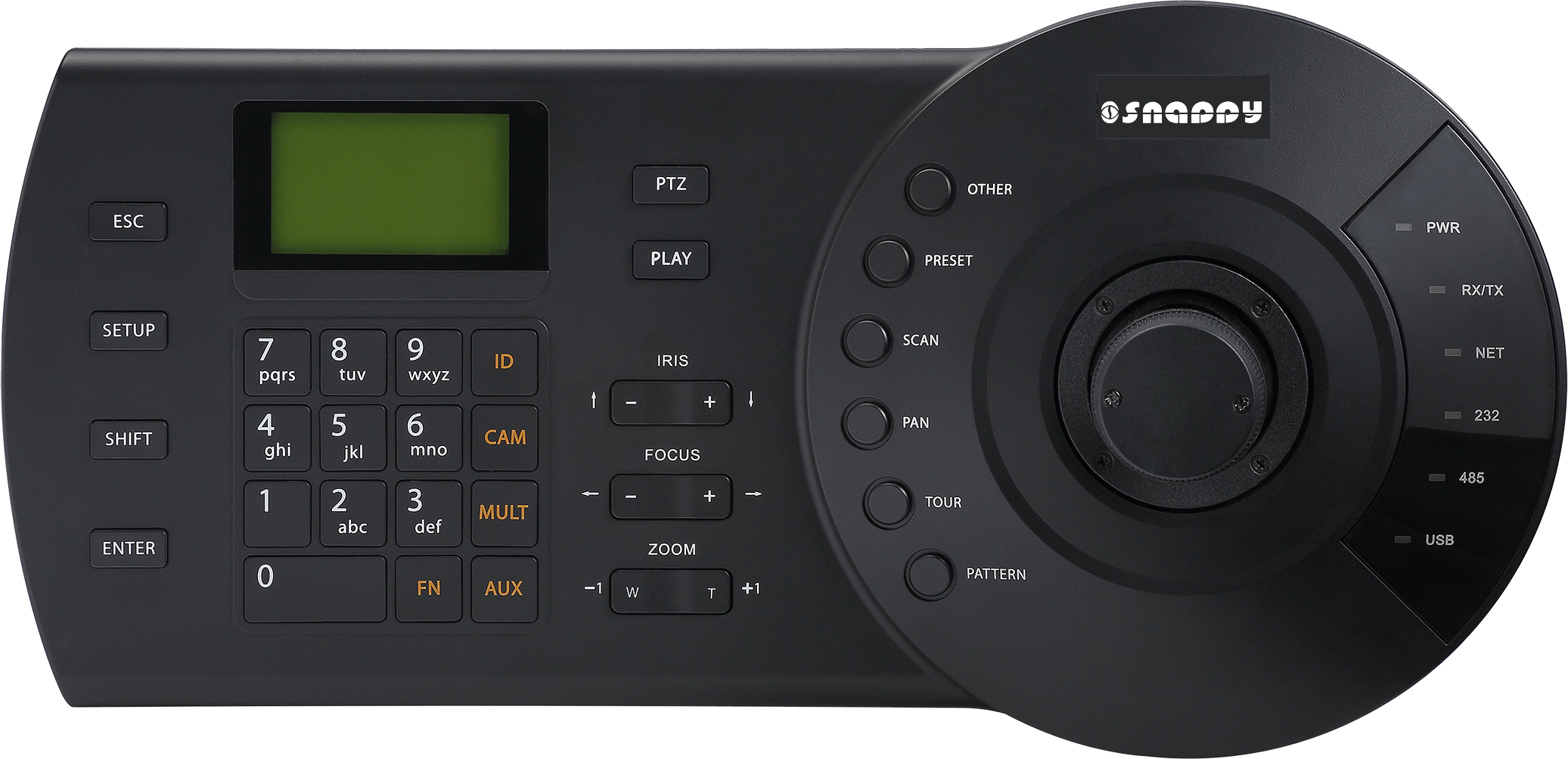

PTZ Keyboard
Model : HKC - 0111

Features

1

Keyboard to Control

  • Snappy High Speed Dome (all models)
  • Snappy Standalone DVR (HKC-0111 only)
  • Snappy Network High Speed Dome (HKC-0111 only)
  • Network Video Server (HKC-0111 only)
2

Connection

  • HKC-0111 : RS485, RS422, USB, RS232 & Network
3

Functions

  • Three Dimensional Joystick Control of PTZ Functions
  • Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern
4

Auxiliary Functions

  • On-Screen Menu & User Operation Procedure Tips
  • Connect to SmartPSS via USB (HKC-0111)

Technical Specifications

Model HKC- 0111
General
Keyboard Key panel Electromechanical
Joystick 3-axis, vector-solving, with twisting, return to-center head
Keyboard Connector RJ-45, RS232, RS485, RS422, USB
Keyboard Communication Direct Mode, Network Mode
Direct Mode
Interface RS232/RS485
DVR Protocol DH2
Dome Protocol DH-SD/PELCO-D/PELCO-P/PELCO-D1/PELCO-P, etc
Network Mode
Interface RJ45
DVR/Network Dome IP Address/Port/Protocol
Environmental
Power Supply Power adapter, input 100V~240V 50Hz/60Hz, output DC12V/1000mA
Power Consumption 5W
Working Temperature -10°C~+55°C
Working Humidity 10% ~ 90%
Atmosphere Pressure 86kpa~106kpa
Dimension 330mm×160(140)mm×37.5(21)mm (W×D×H)(height: 100mm including joystick)
Weight 2.5kg (Including package)

Downloads

1

Catalog : PTZ Keyboard

Click below link to download the catalog for the PTZ Keyboard - Model : HKC - 0111

Download Catalog
