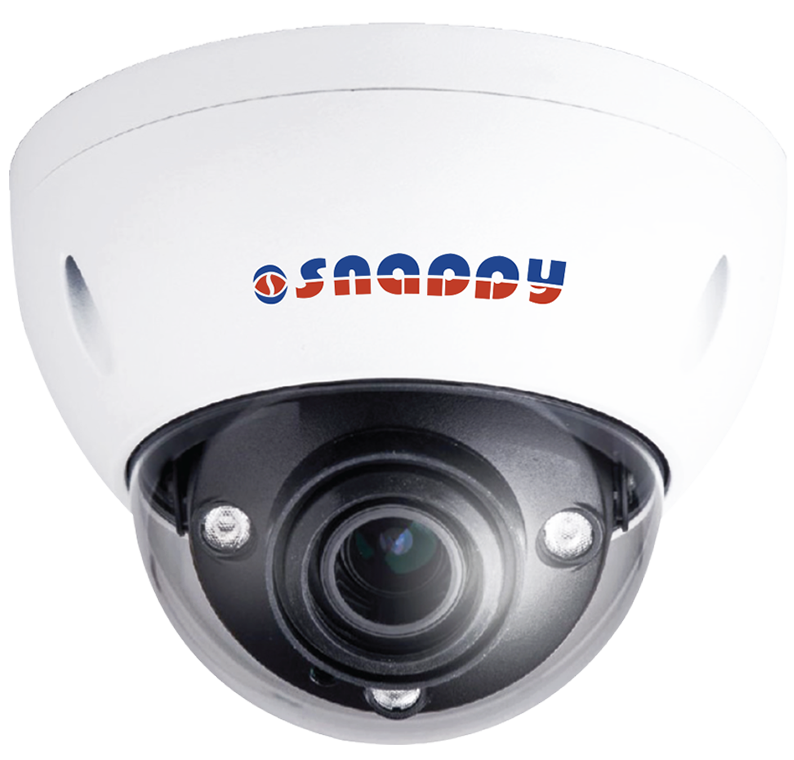

Dome 12MP Ultra HD IP Camera
Model : IP-D12MVFC

Features

  • 1/1.7" 12 Megapixel progressive scan CMOS
  • Support H.264&MJPEG dual codec
  • Max 15fps@12Mp(4000×3000),25/30fps@4K(3840x2160)
  • DWDR,Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 4.1mm ~16.4mm motorized lens
  • Max. IR LEDs Length 50m
  • IP67, PoE

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/1.7” 12Megapixel CMOS
Effective Pixels 4000(H)x3000(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/10000s
Min. Illumination 0.05Lux/F1.4(Color); 0Lux/F1.4(IR on)
S/N Ratio More than 50dB
Video Output 1 port
Camera Features
Max. IR LEDs Length 50m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Sunny/Night/Outdoor/Customized
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 4.1-16.4mm
Max Aperture F1.4
Focus Control Motorized
Angle of View H: 106 ˚~ 32 ˚
Lens Type Motorized/ Auto Iris(DC)
Mount Type Board-in Type
Video
Compression H.264/H.264B/H.264H/ MJPEG
Resolution 12M(4000x3000)/8M(4096×2160)/8M(3840×2160)/1080P(1920×1080)/720P(1280×720) /D1(704×576) /CIF(352×288)
Frame Rate
Main Stream 12M(1~15fps)/8M(3840x2160) (1~25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Third Stream 1080P/720P/D1(1 ~ 25/30fps)
Bit Rate H.264: 32Kbps~ 16Mbps
Audio
Compression G.711a / G.711u/AAC
Interface 1/1 channel In/Out
Smart Function
Smart detection Tripwire, Intrusion, Scene change, Missing/Abandoned, Audio detect, Defocus detect, Face detect
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 128GB
RS485 N/A
Alarm 1/1 channel In/Out
PIR Sensor Range N/A
General
Power Supply DC12V(AC24V optional), PoE (802.3at)
Power Consumption <24W (with IR on, motorized lens working)
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10

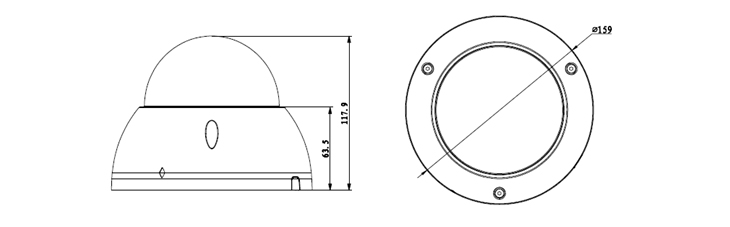

Dimensions Φ159mm×117.9mm
Weight 1.1kg

Downloads

1

Catalog : Dome 12MP Ultra HD IP Camera

Click below link to download the catalog for the Dome 12MP Ultra HD IP Camera - Model : IP-D12MVFC

Download Catalog
2

Application

Dome 12MP Ultra HD IP Camera
