| Video |
|
Compression
|
H.264 / MJPEG |
|
Resolution
|
1.3M(1280×960)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF(352×288/352×240) |
|
Frame Rate
|
|
Main Stream
|
1.3M/ 720P (1 ~ 25/30fps)
|
|
Sub Stream 1
|
D1/CIF(1 ~ 25/30fps)
|
|
Sub Stream 2
|
720P/D1/ CIF (1 ~ 25/30fps)
|
|
Bit Rate
|
H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps |
| Audio |
|
Compression
|
G.711a / G.711u(32kbps)/ PCM(128kbps) |
|
Interface
|
1/1 channel In/Out |
| Intelligent Function |
|
IVS (optional)
|
Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection
|
|
Face Detectione
|
Support
|
| Network |
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
Protocol
|
IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
|
Compatibility
|
ONVIF PSIA CGI |
|
Max. User Access
|
20 users
|
|
Smart Phone
|
iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
|
Memory Slot
|
Micro SD, Max 128GB |
|
Alarm
|
2/1 channel In/Out |
| General |
|
Power Supply
|
AC24V, POE plus(802.3at) |
|
Power Consumption
|
DC12V: 13W, 20W (IR on)
AC24V: 13W, 23W (IR on)
|
|
Working Environment
|
DC12V: -30ºC ~ 60ºC / Less than 90% RH
AC24V: -40ºC ~ 70ºC / Less than 90% RH |
|
Ingress Protection
|
IP66 |
|

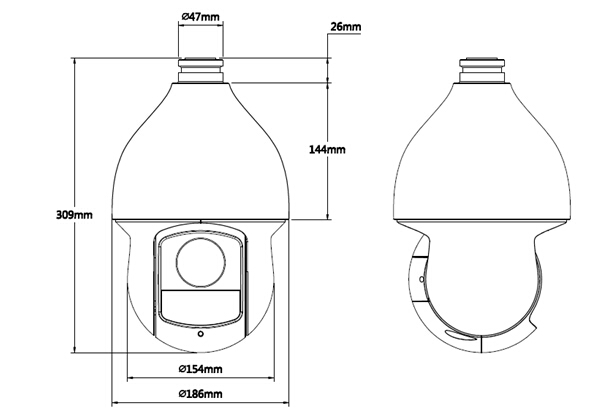

Dimensions
|
Φ186.0(mm) x 309(mm) |
|
Weight
|
3.5kg |
