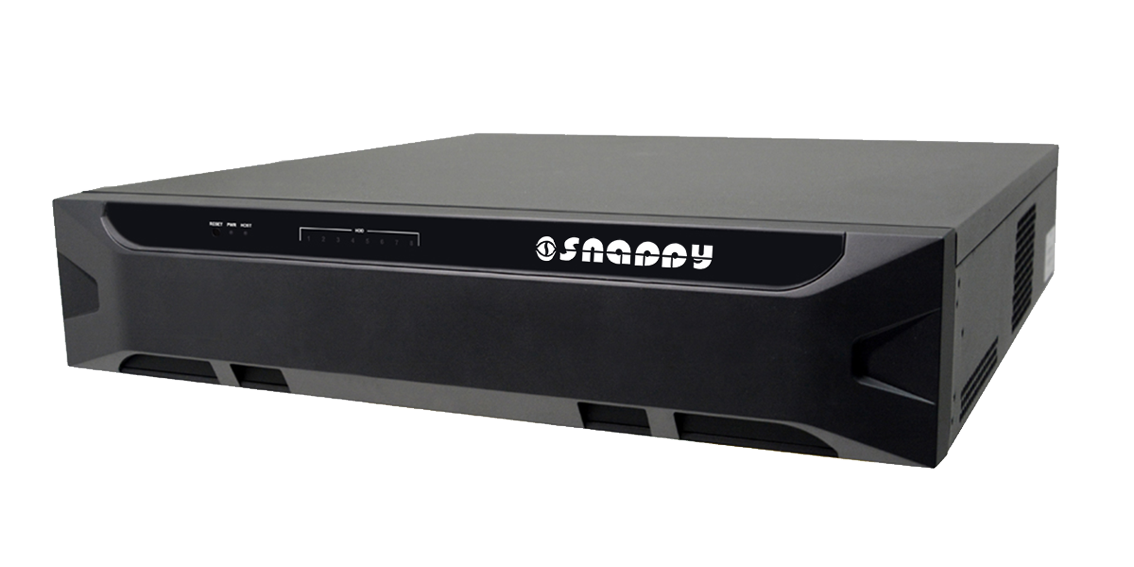

8 HDDs eSATA Storage - ES-198
Model : ES-198

Features

  • ES-198: 2U standard 19-inch rack case

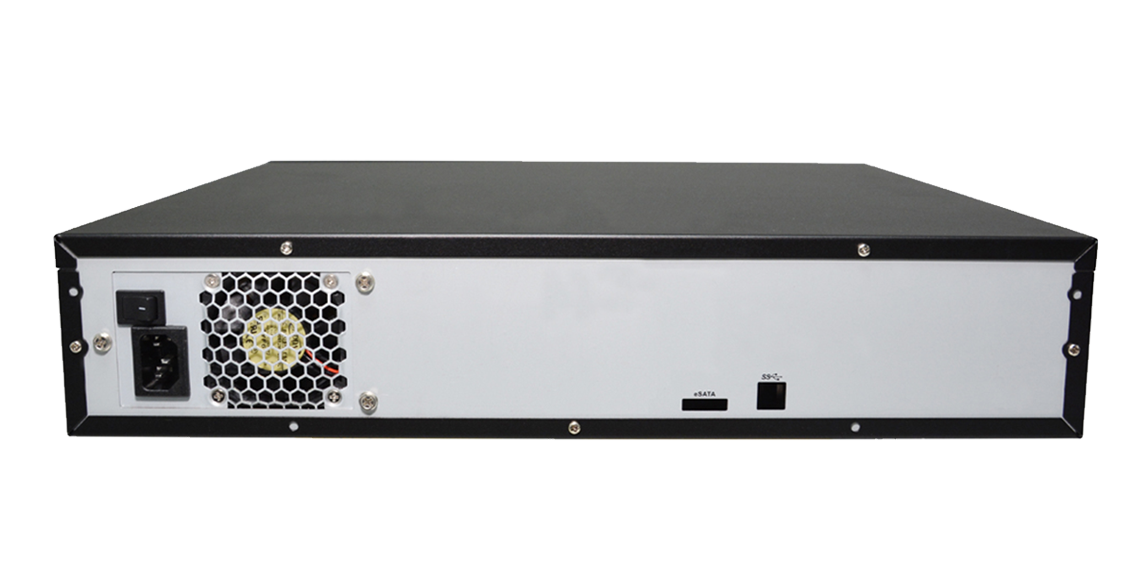

  • Connect master device via eSATA or USB
  • eSATA port transmission speed up to 3Gbps
  • USB 3.0 port data transmission higher than normal
  • Powerful R / W performance: read >64MB/s, write >64MB/s
  • ES-198: Max support Internal 8 SATA HDD up to 48TB
  • Recommended with DVR, NVR connection

Technical Specifications

Spectification
eSATA Interface 1 port, up to 3Gbps
USB Interface 1 port, USB 3.0
Internal HDD 8 SATA ports
R/W Performance Read >64MB/s, Write >64MB/s
Connection Device DVR, NVR
General
Power Supply AC 100~240V, 50/60Hz
Power Consumption (without HDD) 9.8W
Fan 1 pcs
Working Environment 0℃~40℃(Working) , -20℃~70℃(Storage)
86kpa～106kpa /10%－90%RH(working), 5%-90%RH(Storage)
Dimension(W×D×H) 2U, 440mmx89mmx448mm
Weight(exclude HDD) 6.5KG

Downloads

1

Catalog : 8 HDDs eSATA Storage

Click below link to download the catalog for the 8 HDDs eSATA Storage - Model : ES-198

Download Catalog
